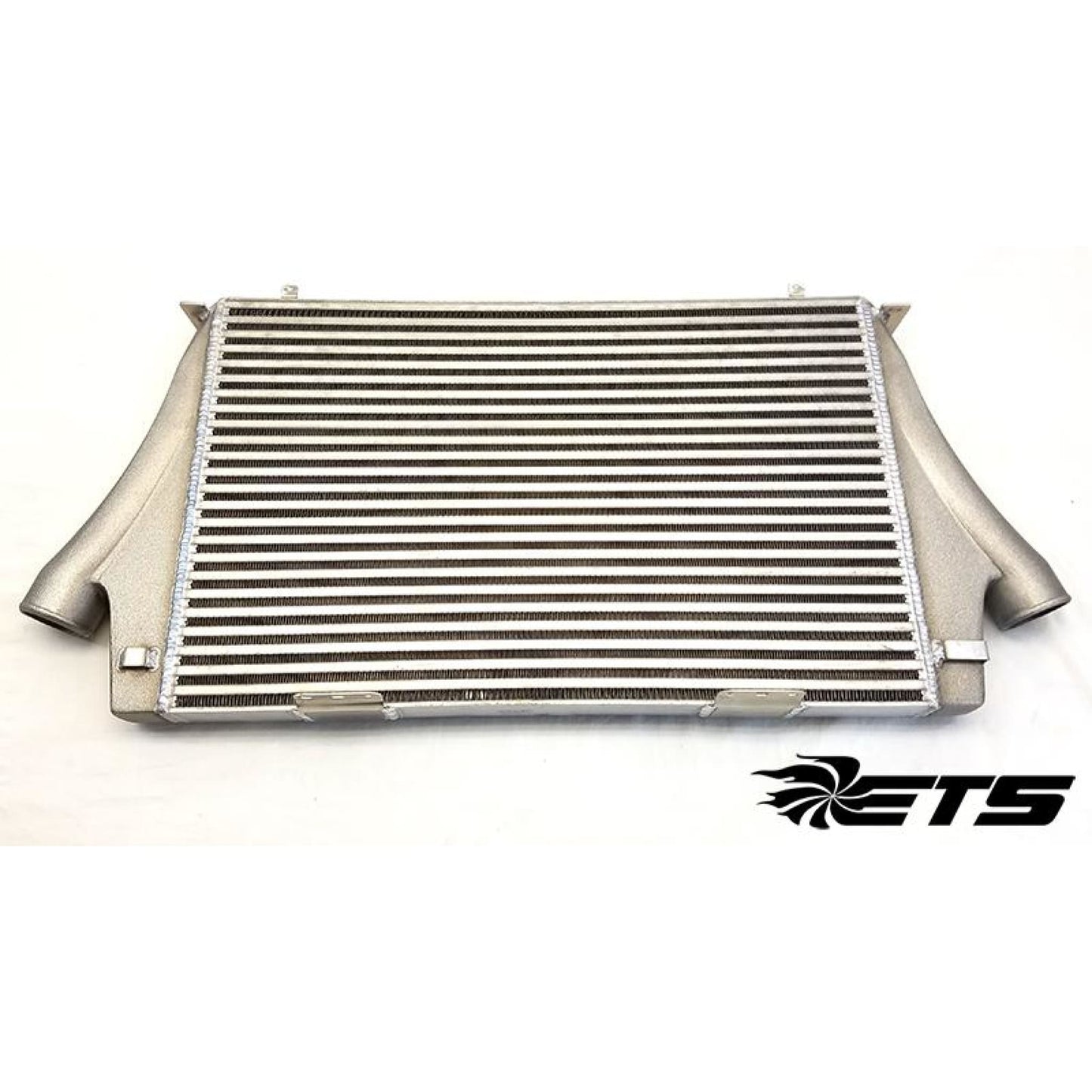

The ETS Saab 9-3 SS/SC intercooler unit features smooth flowing cast tanks and a highly efficient bar and plate core. The core is 100% vacuum brazed, and features louvered external fins, and a very fine internal fin pack. To attain the maximum efficiency possible, the internal fins are offset and staggered to get every possible air molecule to "scrub" up against an internal fin so that the heat may be transferred to the external fins and carried away from the intercooler. It is this unique design that allows this ETS intercooler to attain an 82% efficiency rating. A 300 HP there is only a .75 psi drop! As well as being extremely efficient, these cores have a very high flow rate of 1080 CFM, allowing it to handle as much boost as the engine is configured withstand. Further, the core is rated for 710 crank HP! All from an intercooler is designed to fit into the stock location!
The construction of the intercooler is second to none. The vacuum brazed bar and plate core is very rugged and can withstand rock and other debris that can easily dent other types of cores. To complement a fine core, custom cast Aluminum 356 End Tanks are used. These end tanks are deburred, shot peened and then Tig welded to the core. Each core is visually inspected and pressure checked to 35psi before shipment to ensure fault free operation.
The ordering process was simple, the item was delivered quickly, and the price was within the range of ETS's competitors. A good purchase!
QUESTIONS & ANSWERSAsk a Question
What are the dimensions of the core itself?
This uses a 25.5" x 16.5" x 2.0" Core
Will MY2010 2.0T original charge pipe fits in this ETS cooler? Or do I need to buy additional piping kits?
This intercooler is designed to be a direct replacement on the factory unit. Your factory charge pipe or any stock replacement charge pipe will work with our intercooler.
Hi Sir, I would like to know the 1000-10-IC-008 Package dimensions and weight! That can help me evaluate some problem about the checking luaggage. Thanks for your help. And have a nice day!
The packaged weight is 34lbs and the dimensions are 40" x 20" x 8"
Is the made to work with the factory charge pipes or after piping kits
This is a direct replacement for stock and works with stock piping. It should work with any aftermarket piping that works with the stock cooler as well.
