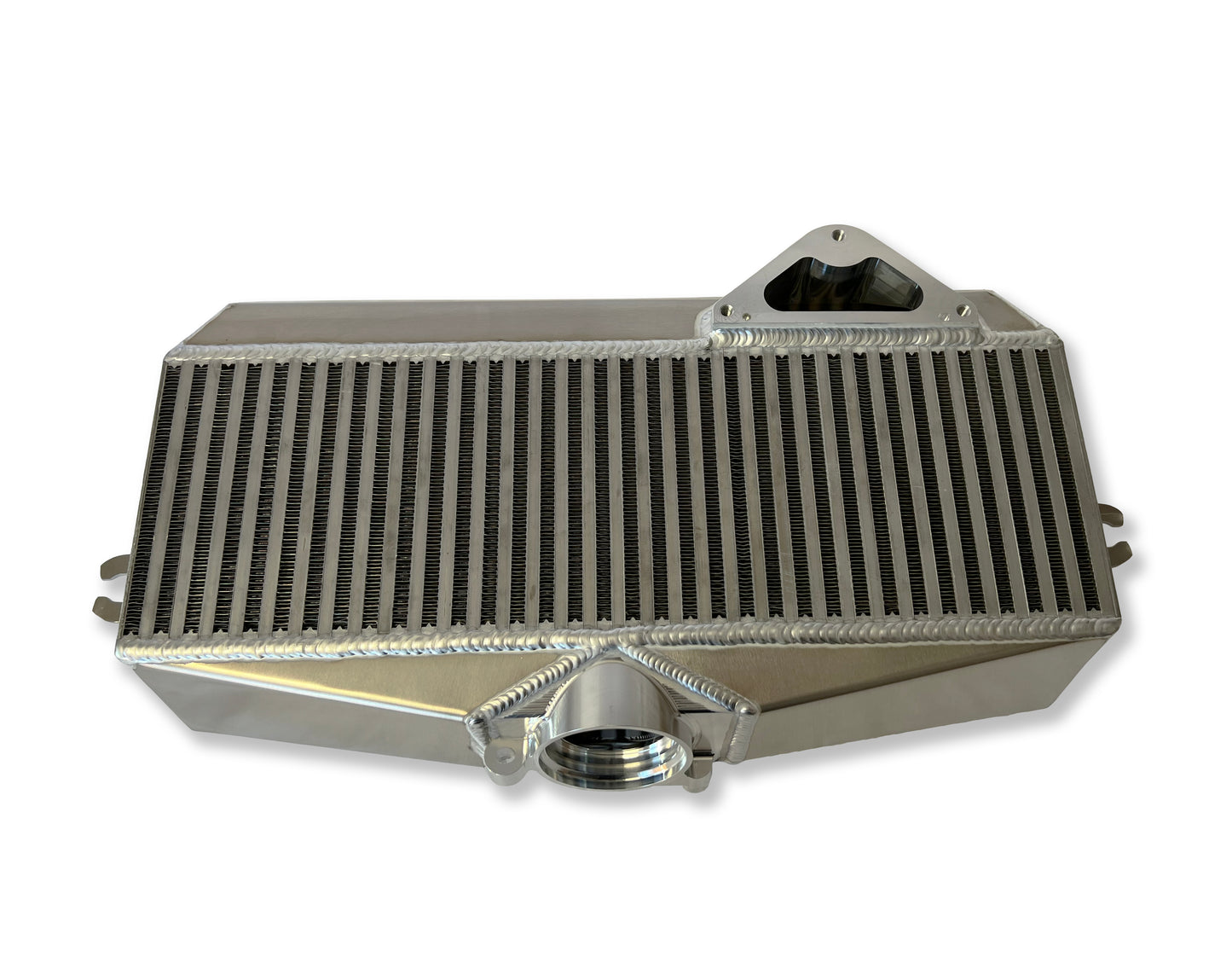

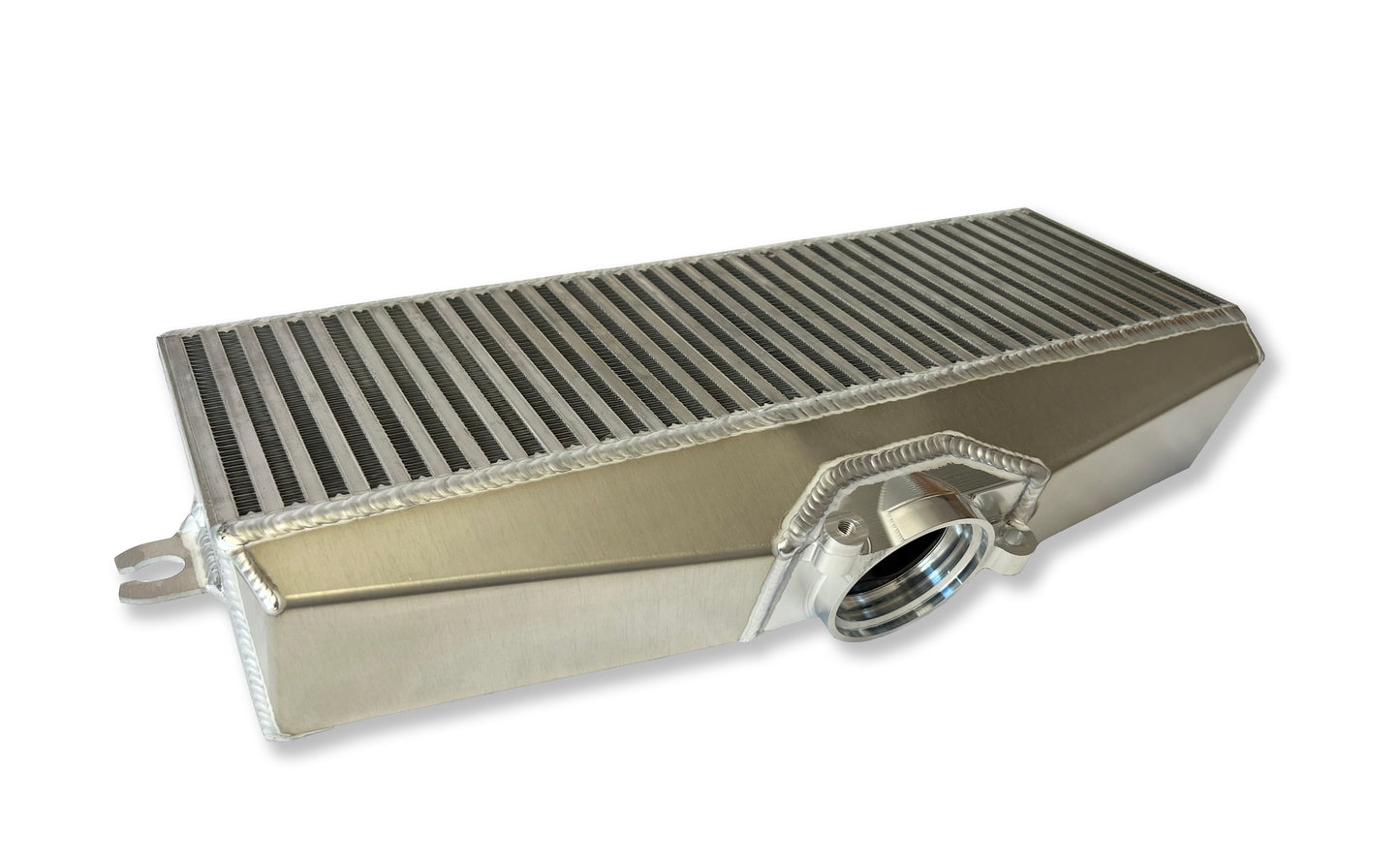

Extreme Turbo Systems (ETS) has designed the highest performing direct bolt on top mount intercooler for your 22+ Subaru WRX. The ETS 2022+ WRX Top Mount Intercooler is designed for high efficiency and high flow with a massive 21" x 7" x 4" intercooler core packed with 34 charge rows!
Features
- Massive high efficiency and high flow 21" x 7"x 4" intercooler core
- Largest top mount intercooler on the market
- 34 charge rows vs our competitors 24 charge rows
- More charge rows equal more heat transfer area
- Offset and staggered fin design for maximum efficiency.
- Direct OEM Replacement
- Works with factory charge pipe
- Billet inlet
- Billet outlet
- Optional anodizing available (Black, Gold, Blue , Red and Purple)
- TIG welded construction
- Pressure tested over 35 psi
Fits
- Subaru WRX 2022+
- Outback 20-22
- Ascent 19-22
- Legacy 20-22
Intercooler Options
|

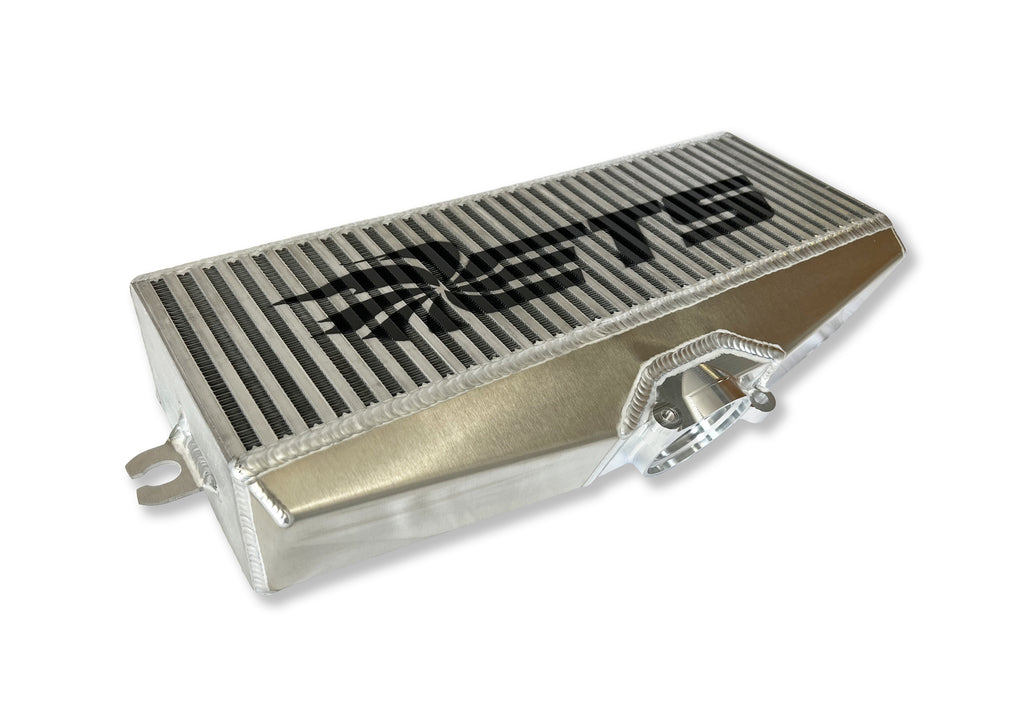

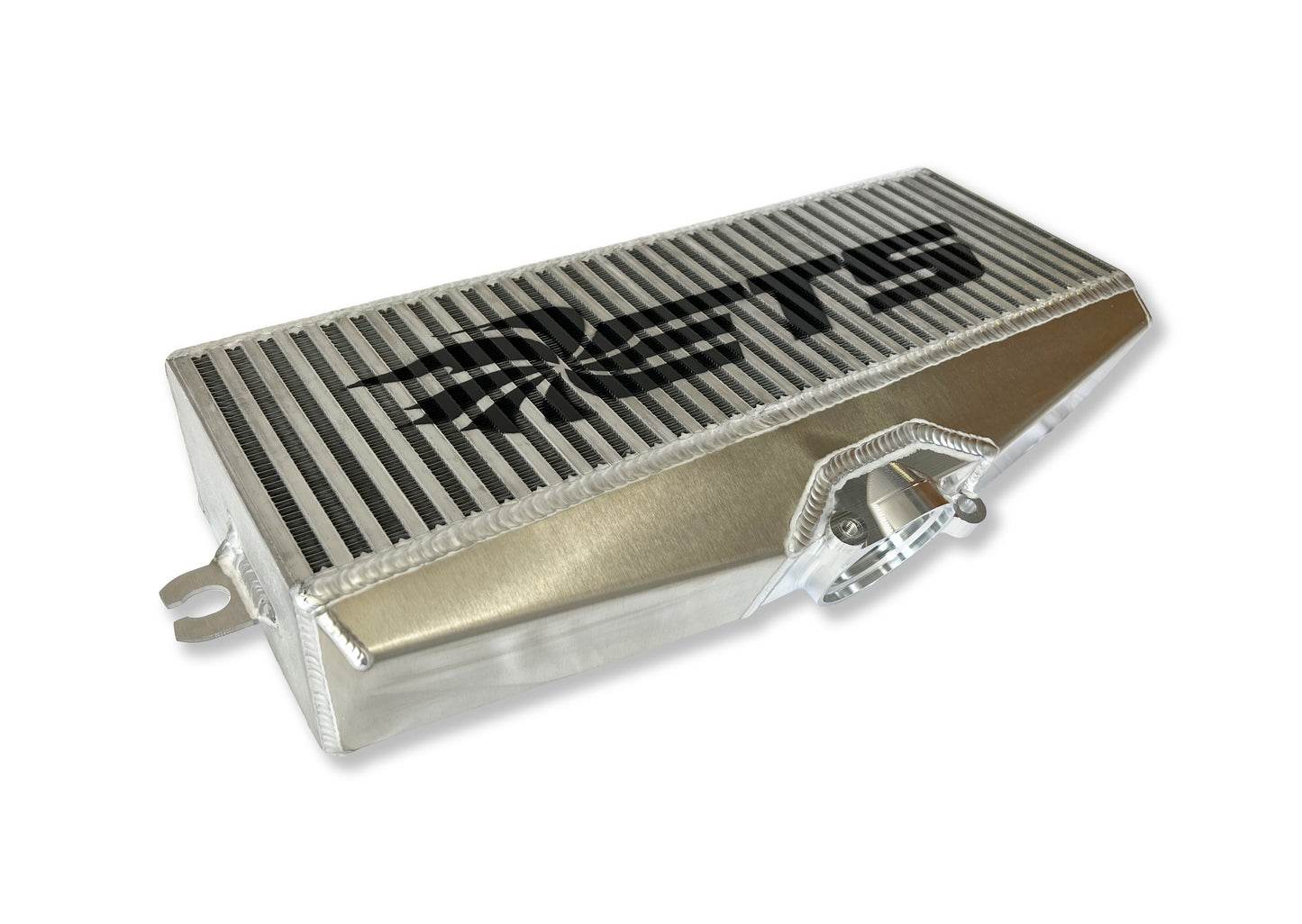

Non Anodized Silver Finish w/ ETS Logo (Standard Option) |

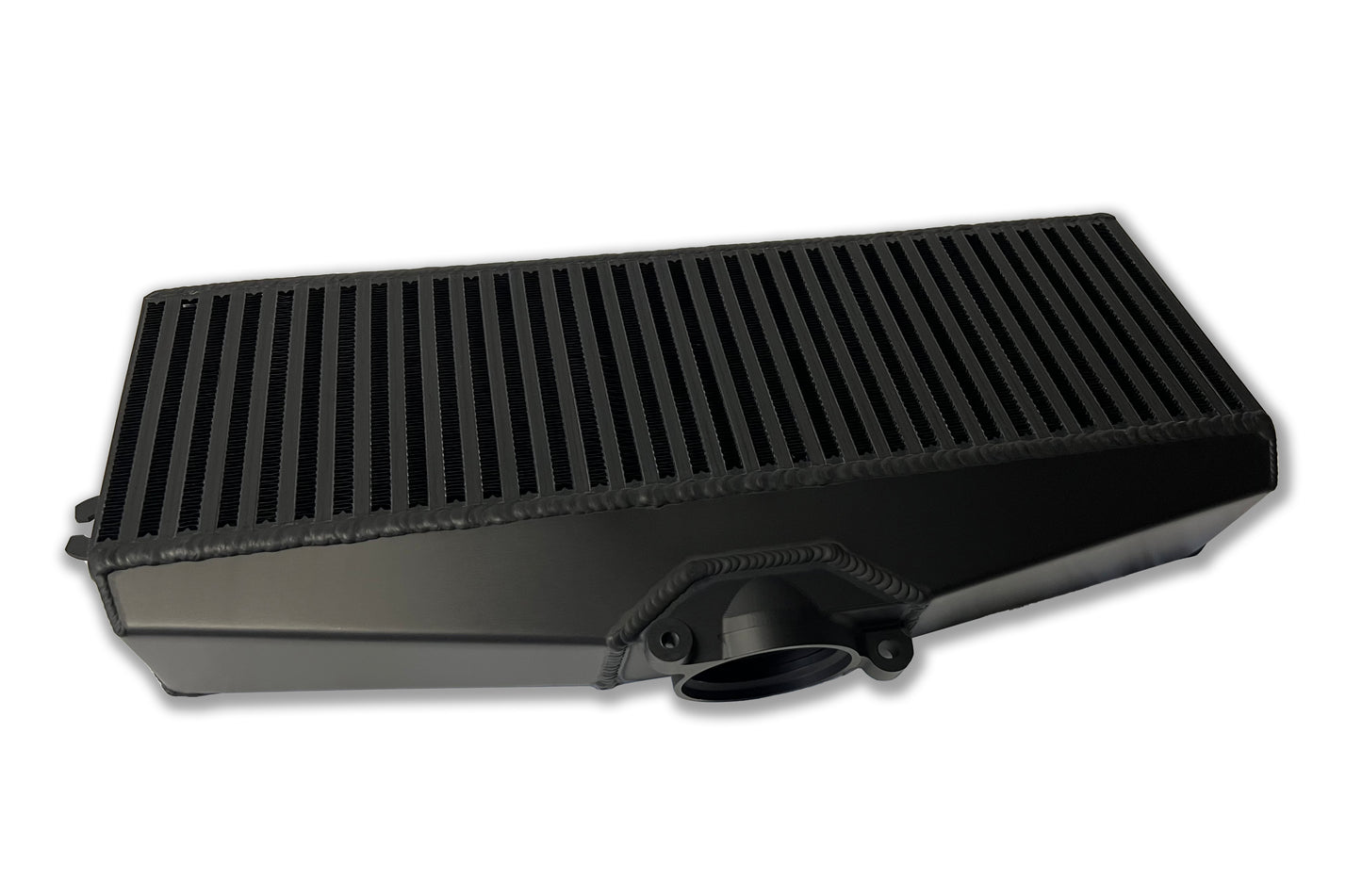

Anodized Black |
|

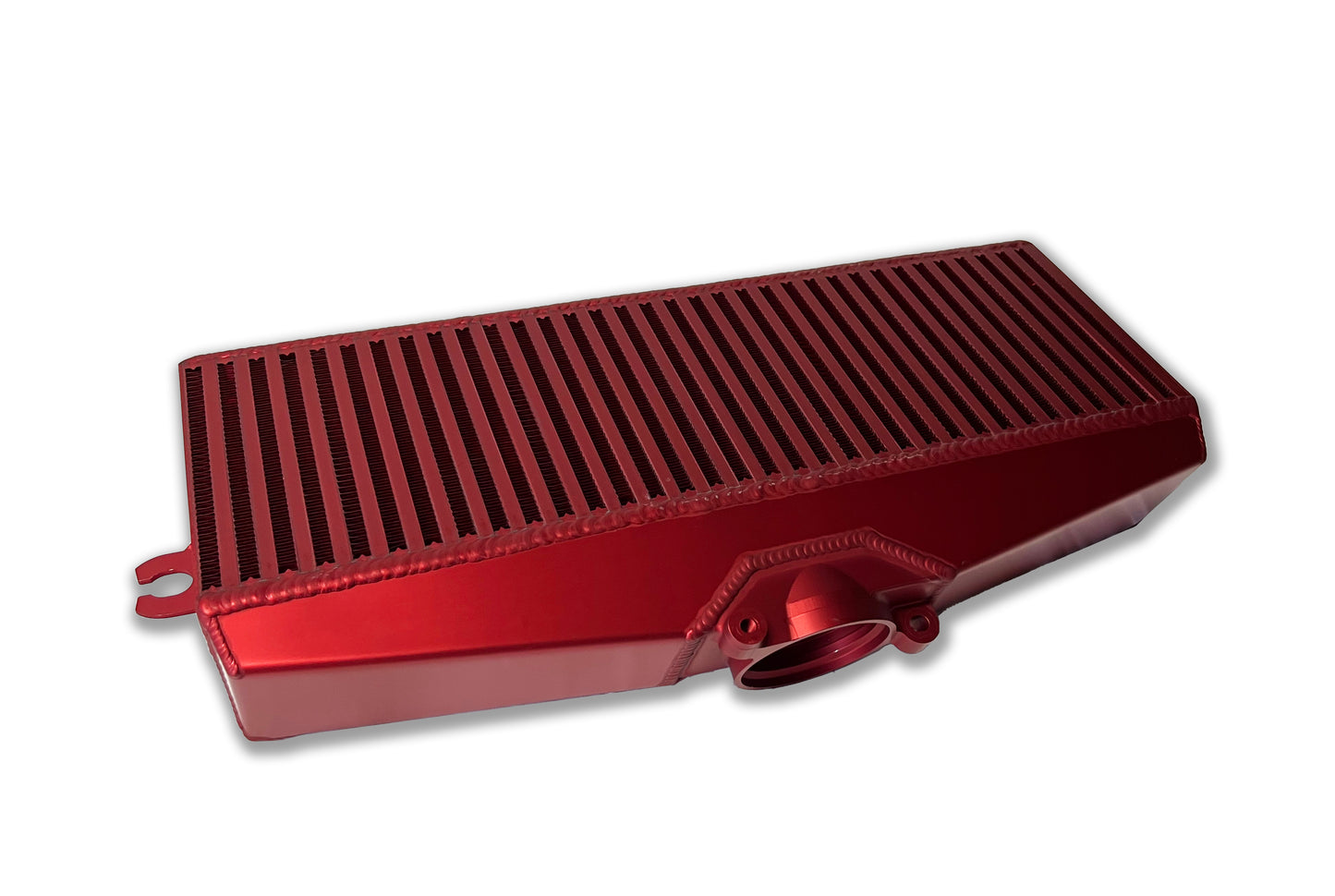

Anodized Red |

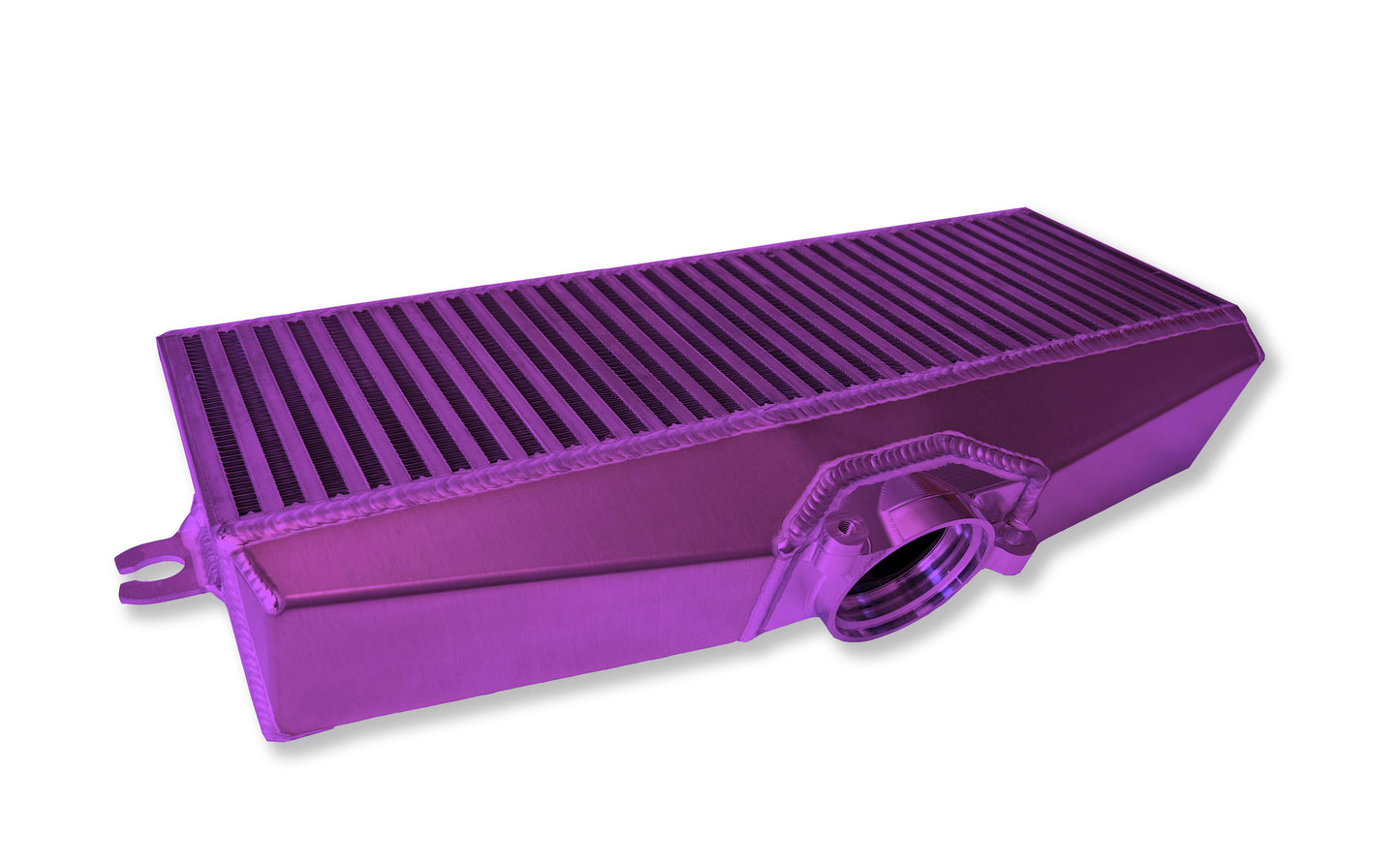

Anodized Purple |
|

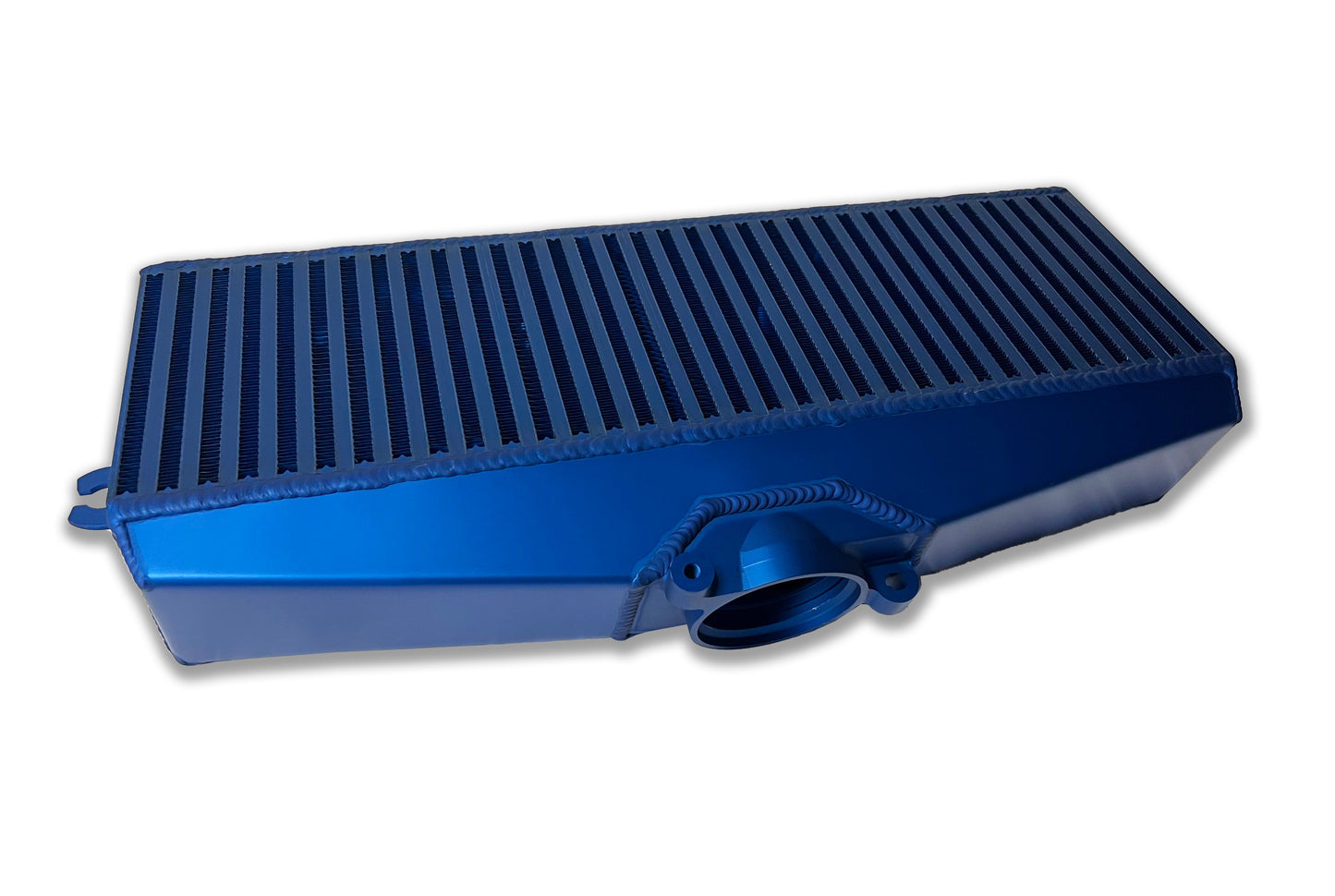

Anodized Blue |

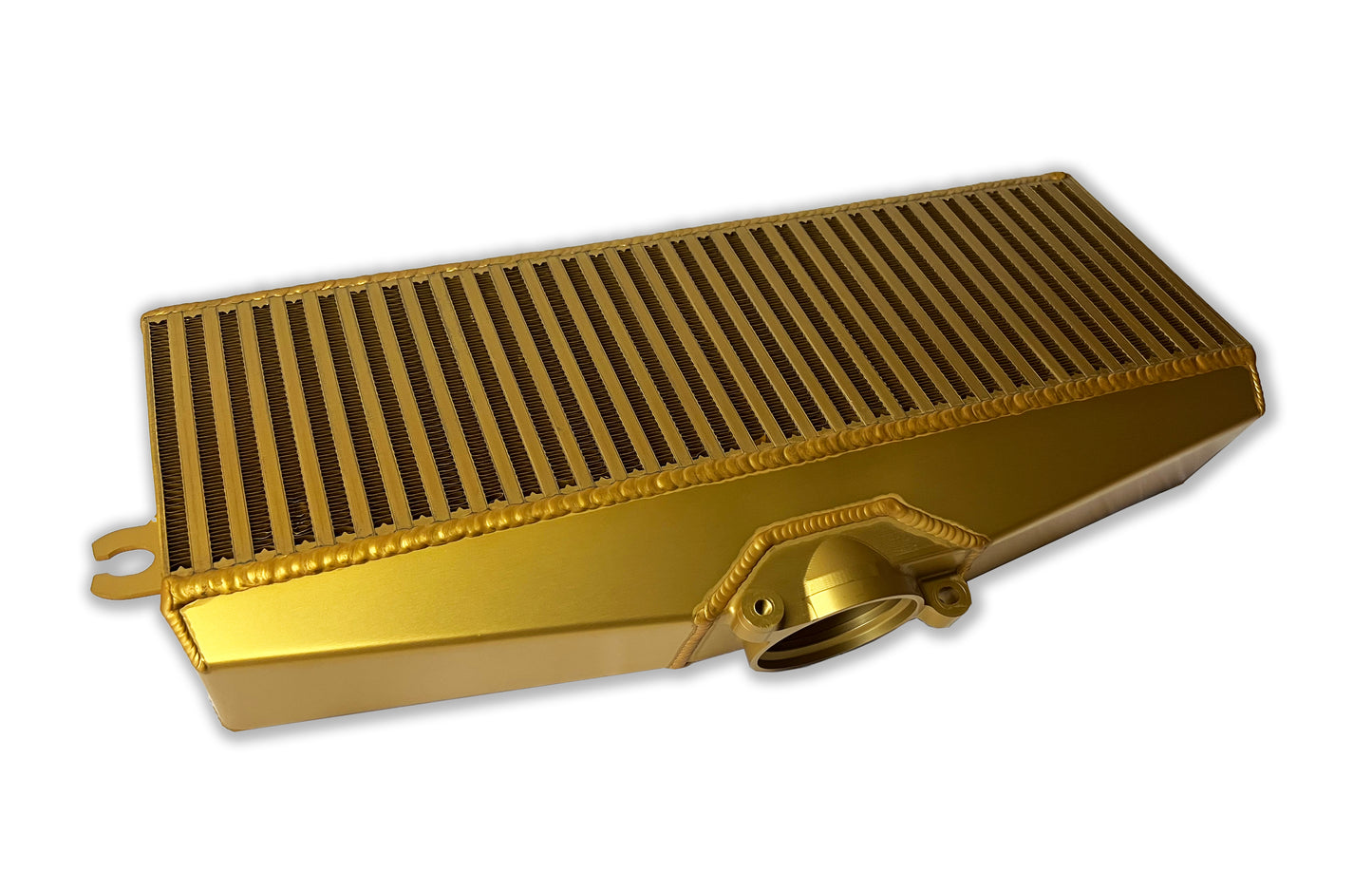

Anodized Gold |

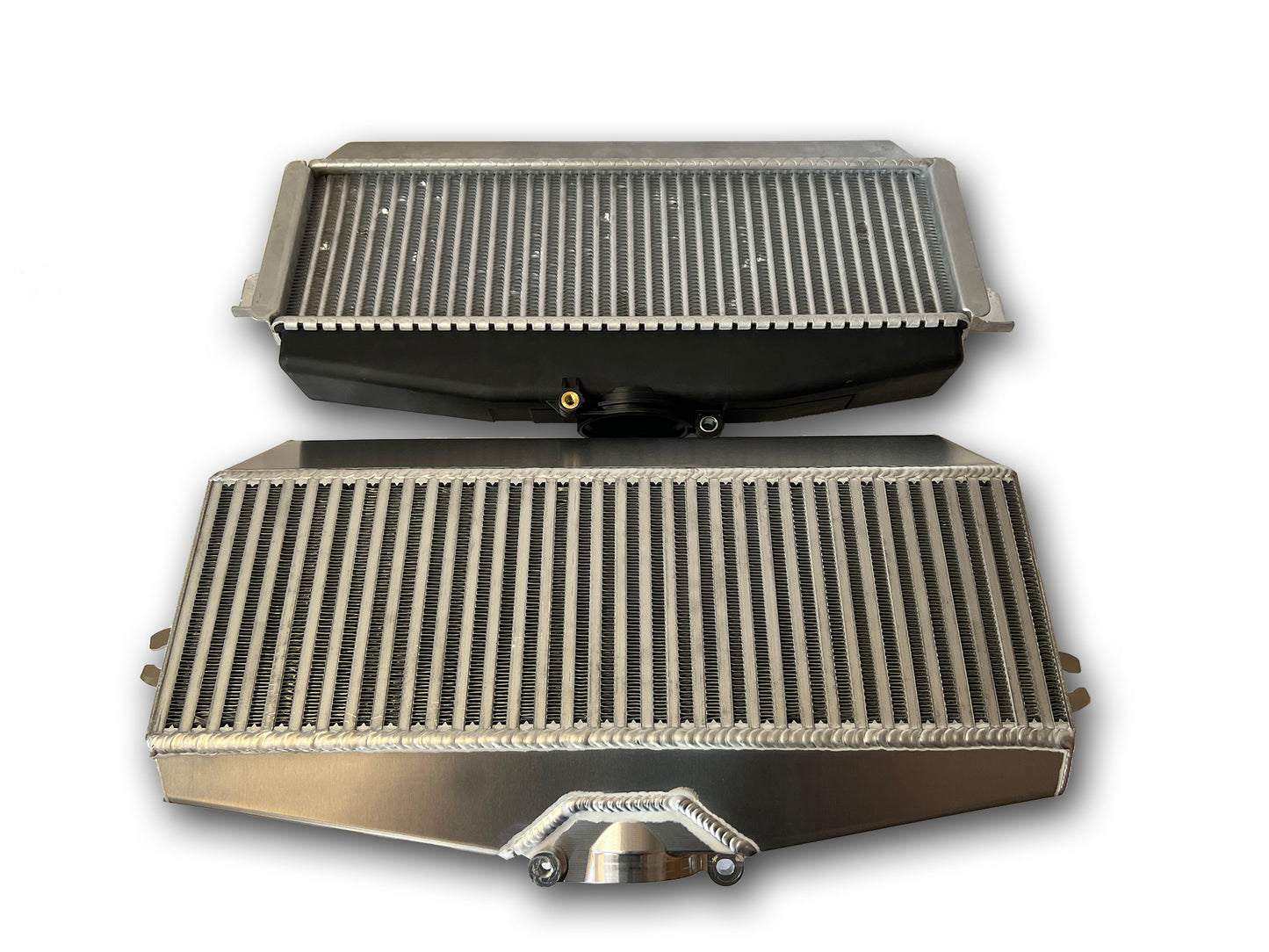

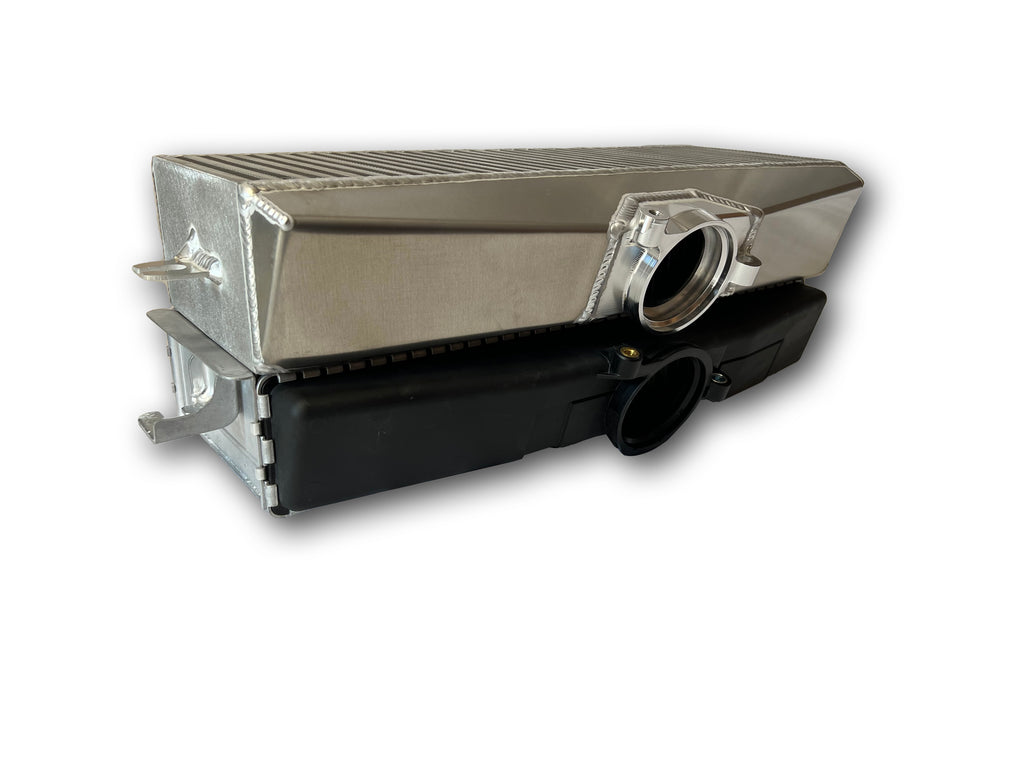

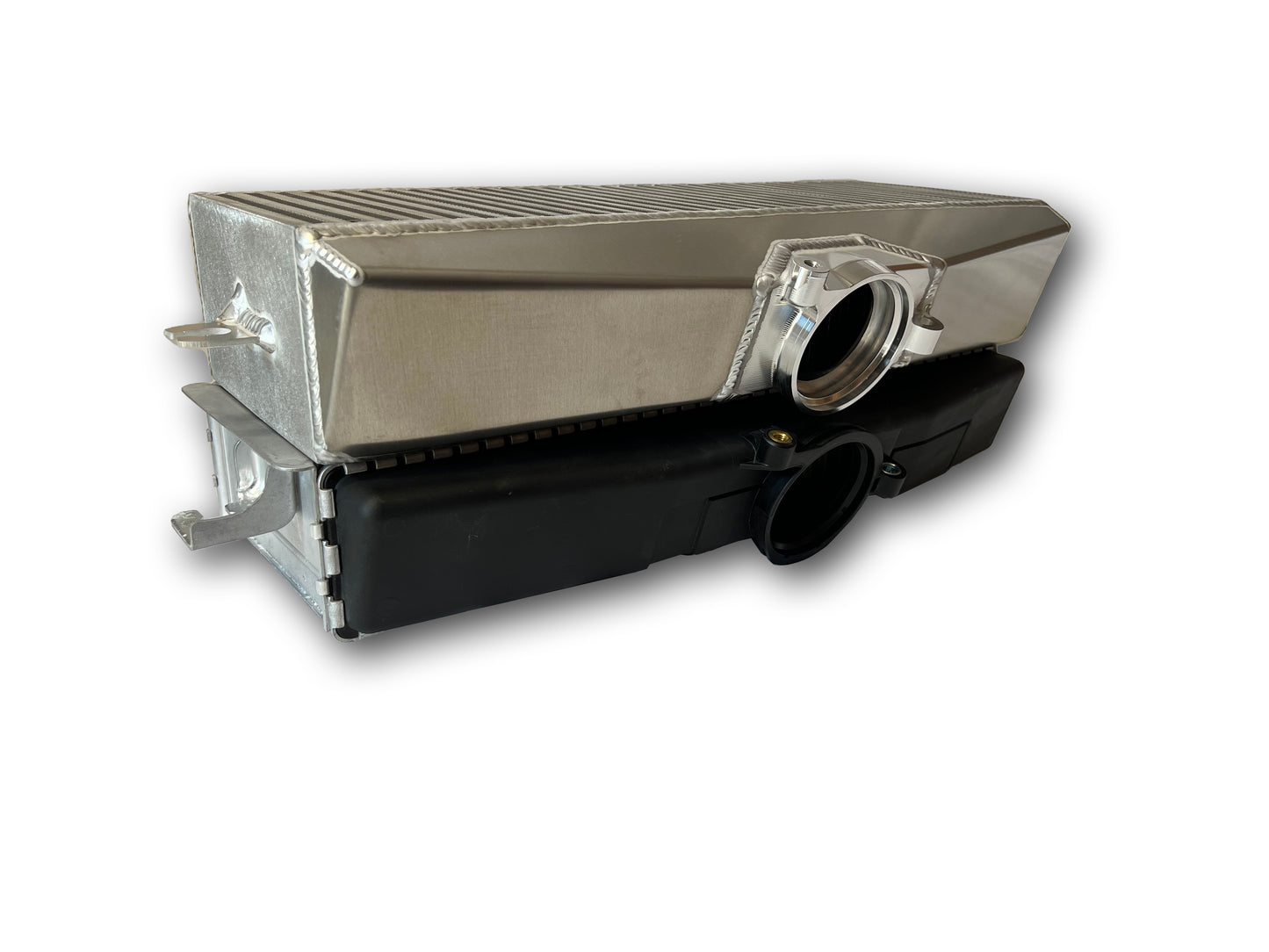

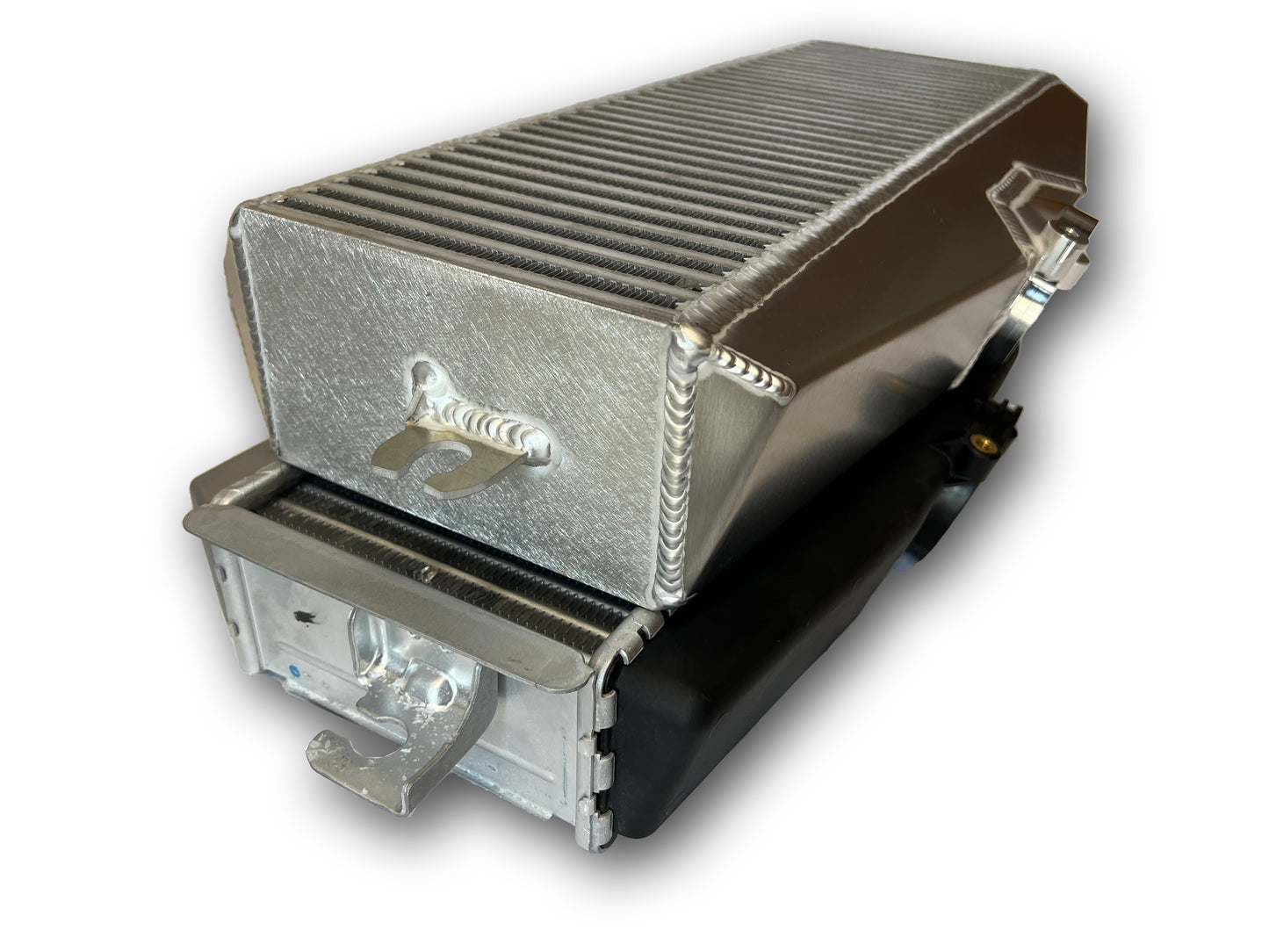

ETS vs Stock Intercooler
 |
 |
 |
Customer Reviews
Great product great fit along with the cold air intake, the j pipe, and exhaust I gained almost 3 psi boost without tune.
Great Product!!
Perfect fitment and performance. Paired with the CAI and a tune makes the 2022 WRX the perfect car.
Just added this new TMIC to compliment my ETS intake and catback exhaust. Love it and it looks really good.
Very well made, fit perfectly on my 2022 outback XT. I am running a JB4, 30% ethinol, 23psi boost IAT is very low. Great product!!!
Fits great and sounds good paired with the ETS Cold Air Intake. Install video on the Widebody Nation YouTube channel.
And yes, as mentioned below, remember to reuse the outlet o-ring from the stock intercooler or you’ll have a vacuum/boost leak.
Excellent workmanship from ETS and very easy to install. Basically the same mounting points as a stock intercooler, so it’ll go in the same way it came out.
IAT while cruising with stock intercooler was about 10-15 degrees above ambient temperatures, and around 8-10 degrees above ambient with ETS’ intercooler.
Biggest difference I noticed is when in boost/on throttle IAT stayed around 6-10 above ambient.
So far so good, hoping temps will stay nice and cool as boost goes up. Defs would recommend this intercooler.
Heads up: remember to reuse the outlet o-ring from the stock intercooler or you’ll have a vacuum/boost leak. …Ask me how I figured that one out lol
Thank you, ETS!
QUESTIONS & ANSWERS
Ask a Question-
Will this require a tune?
This part will not require a tune for operation, but will not provide the full performance benefit provided by additional cooling without a custom tune.
-
Is this carb legal to be shipped to California?
With the current EPA and CARB regulations on the automotive industry, we are unable to ship some items to California addresses.
Currently, we are only able to ship the following items:
-Axleback/Catback Exhausts
-Clamps & Couplers
-ETS Merchandise
We're currently in the process of getting CARB certification for some of our products, but I do not have any kind of realistic timetable for that at this time. -
What are factory intercooler dimensions?
Stock Top Mount
20 x 6.5 x 2.5 (in reality it's probably closer to 2.375 without the shrouding)
ETS Top Mount
21 x 7 x 4
