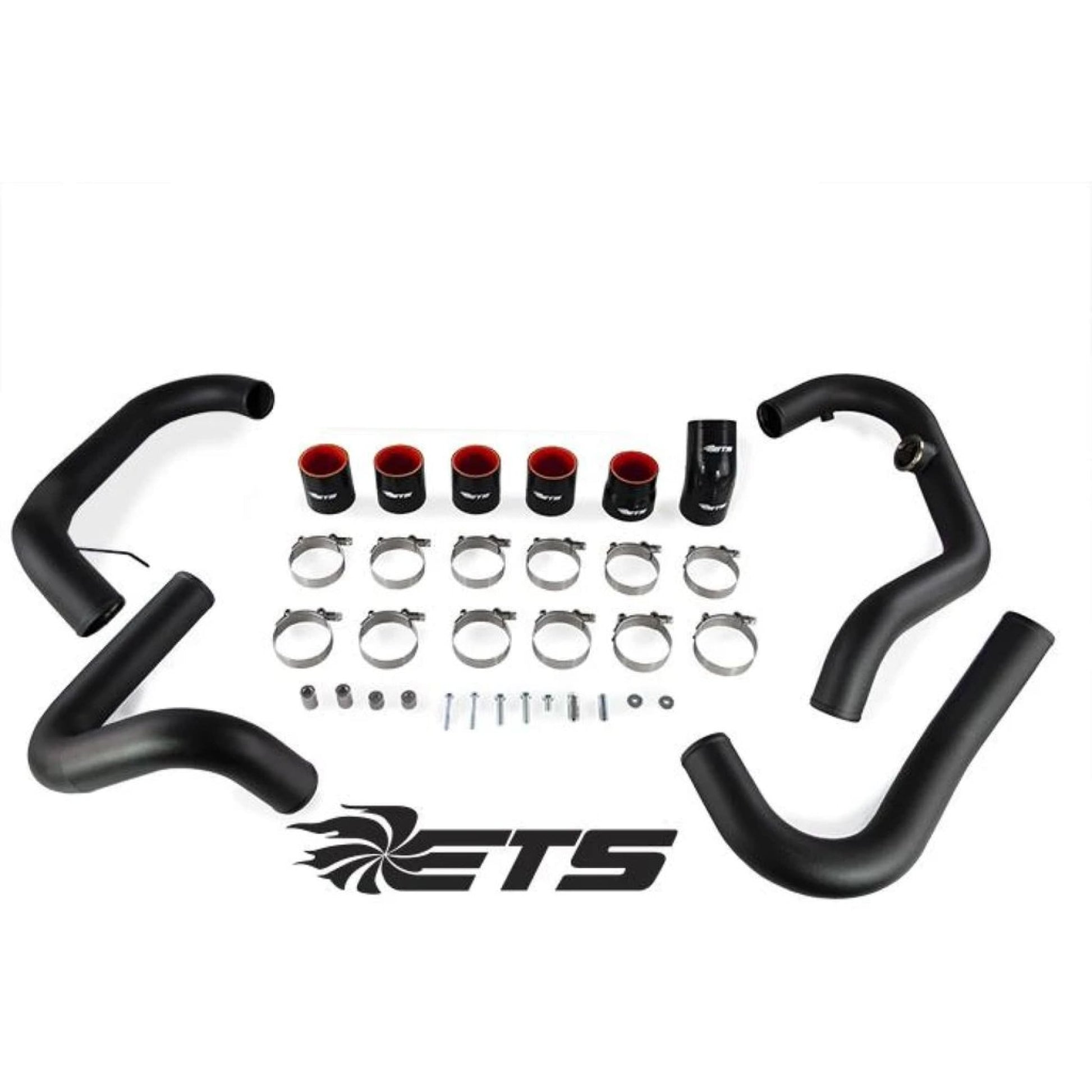

This piping kit is the best on the market for relocating the factory Subaru intercooler. The factory intercooler location allows for excessive heat soak and a poor amount of heat dissipation. This piping kit allows you to run a front mounted intercooler and get your cooler into cleaner and fresher air. This allows you to run a larger surfaced intercooler. Air is naturally forced through the front grill of your car, this is the logical location for your set up too run! This is piping only! No Intercooler included! This piping comes in a wrinkle black finish!
Note: We now include an AIT Bung w/ Plug by default. No Sensor included.
QUESTIONS & ANSWERS
Ask a Question-
I am not sure on what it means on the turbo outlet , upgraded stock location 2.0
The stock turbo on this car has a 1.75" turbo compressor outlet. Most stock location upgrades will bump that compressor outlet to a 2.00", we provide a provision for this if you are running a turbo other than the stock one in the stock location.
-
Will this accept a replacement stock location turbo (such as Cobb 20G) if I decide to upgrade at a later time?
Yup! All you will have to do is swap out the 1.75" to 2.50" 90 degree coupler for a 2.00" to 2.50" 90 degree coupler. Super easy!
-
Will this work with the Cobb xle bpv?
Yup! You will need to select the stock blow off valve option to use this blow off valve.
-
Will this piping kit work/fit with the Cobb intercooler or only with the ETS Intercooler?
This will only fit the ETS intercooler.
-
would either intake manifold options work on standard ams manifold?
We do not have a piping kit for the AMS intake manifold at this time.
-

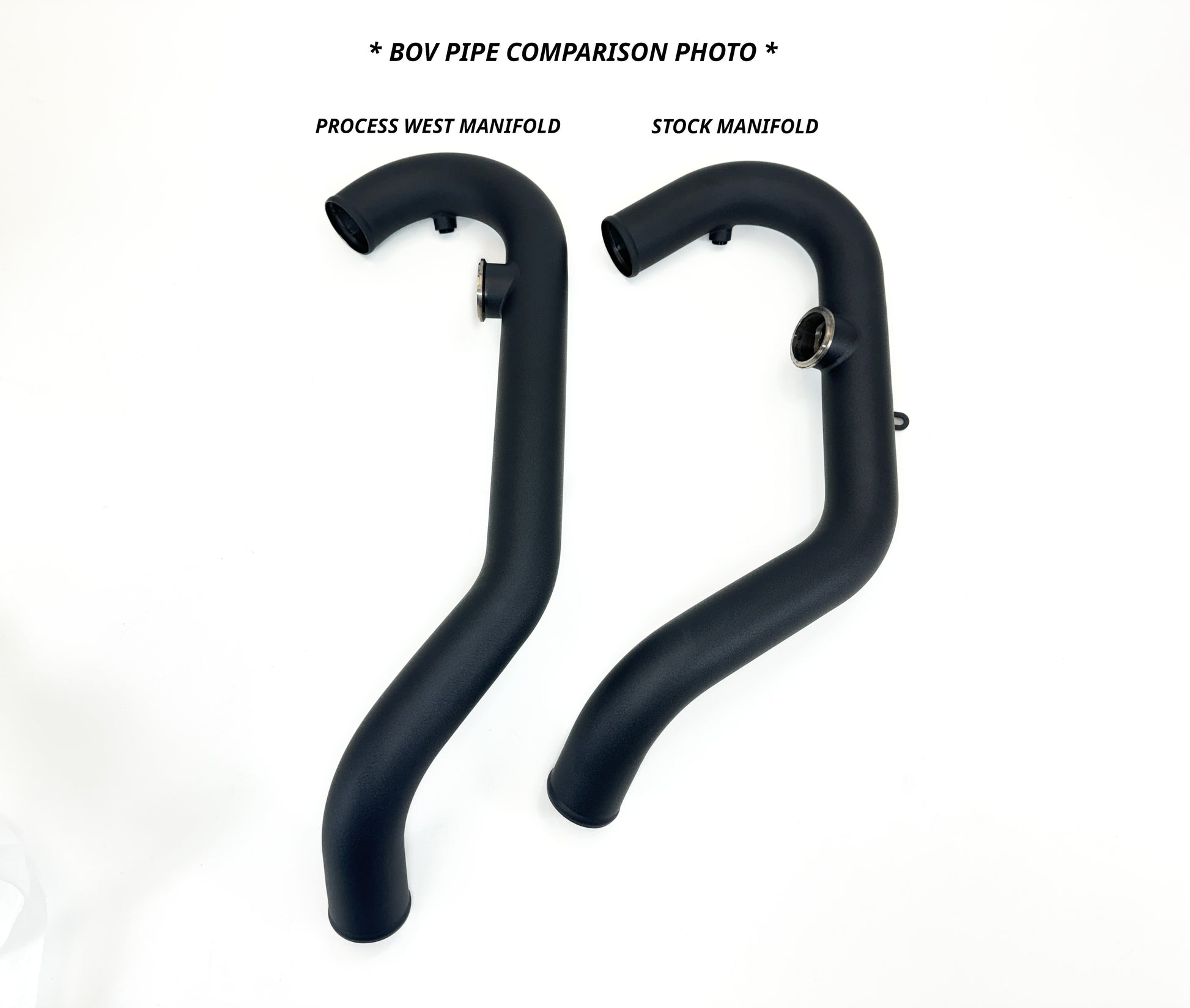

is the BOV going to be located near the bottom or is it on top near the intake manifold?
The BOV flange goes up top near where the stock BOV was.
-
Can I use this kit with pt5558?
You can use this piping kit if you select the rotated option and you're running one of our rotated turbo kits.
-
Will this fit a stock location replacement turbo
Yes, just add a note its for a stock replacement turbo
-
Does the AIT bung option come with a plug also for those of us planning in advance?
Yes it does
-
I have the MAPerformance CAI will you piping kit fit with minor to no issues?
The heat shield won't work with our FMIC but the intake it self should fit with little to no modification.
-
What is the thread/size for the AIT bung?
3/8th NPT
-
Will I still be able to use the Cobb air box intake in conjunction with the ETS piping kit?
I am not sure, we have only installed it with our intake. I would imagine it would work fine though.
-
Does this kit come with the Intercooler
This is just the piping kit. The intercooler can be found at this link. https://www.extremeturbosystems.com/products/ets-subaru-sti-2015-front-mount-intercooler
-
What material are these pipes made of?
Stainless Steel
