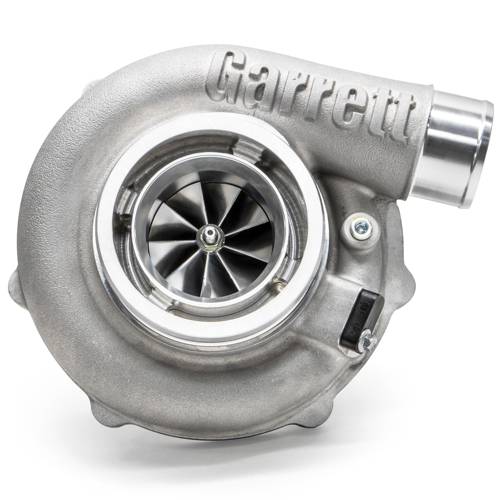

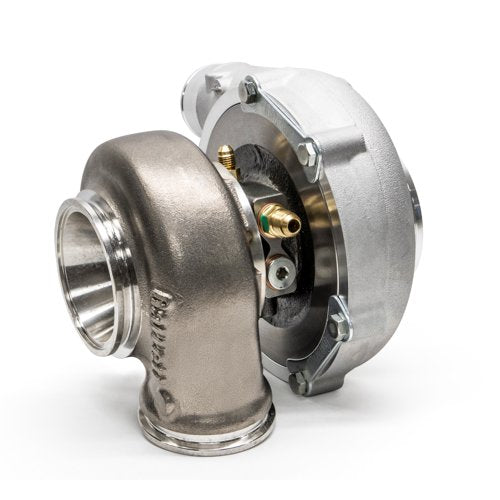

Introducing the Garrett® G30-770 Turbocharger – Unleash the Power!
Upgrade your vehicle's performance with the cutting-edge Garrett® G30-770 standard turbo assembly kit. This turbocharger is meticulously designed to deliver exceptional power and efficiency, making it the ultimate choice for performance enthusiasts and tuners alike.

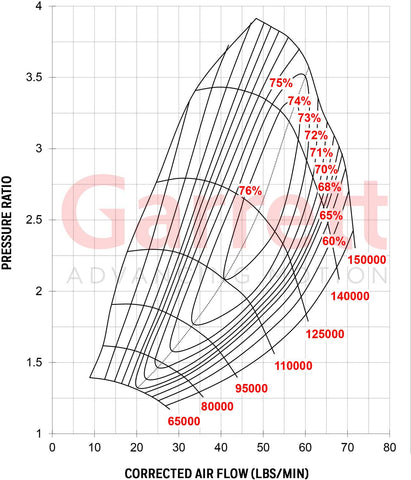

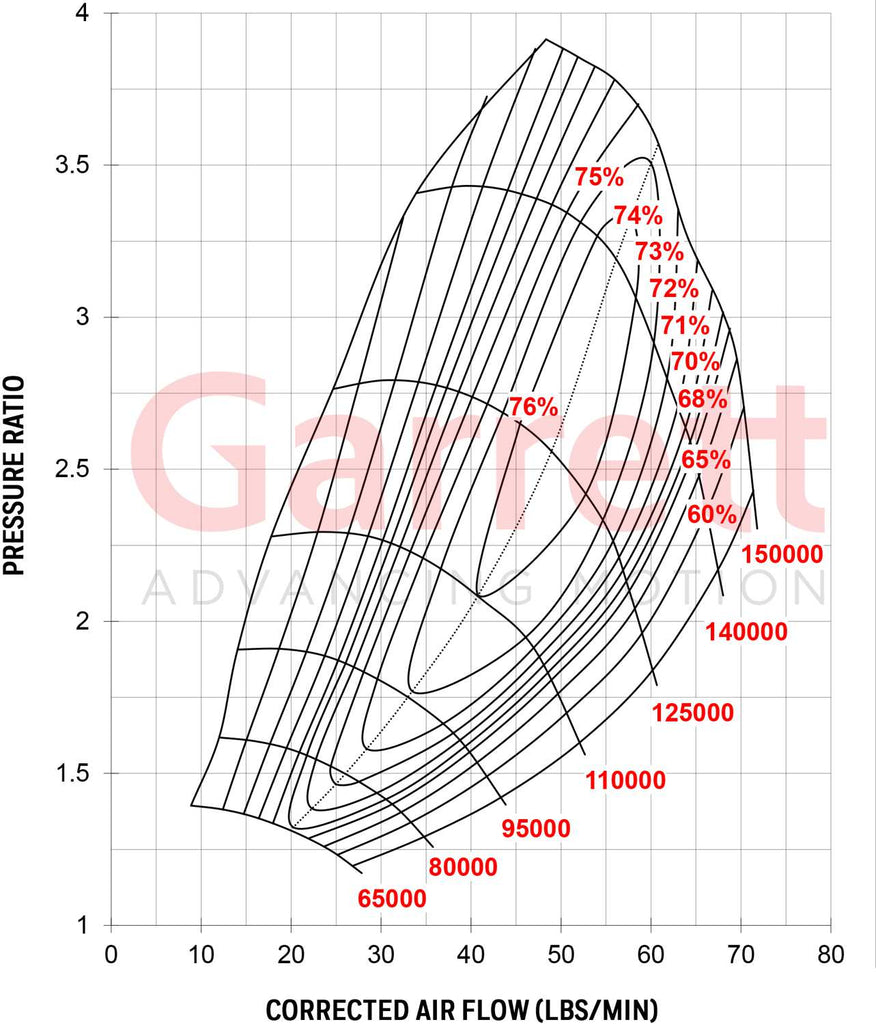

New G Series Compressor Wheel Aerodynamics: The G30-770 features state-of-the-art compressor wheel aerodynamics, ensuring maximum airflow and improved compressor efficiency.
Fully Machined Speed Sensor and Pressure Ports: Equipped with fully machined speed sensor and pressure ports, this turbocharger allows for precise data monitoring and analysis.
Standard and Reverse Rotation Configurations: The G30-770 offers the flexibility of standard and reverse rotation configurations to fit various vehicle setups. This turbocharger is setup for Standard Rotation (Most Common).
Oil Restrictor and Water Fittings Included: The turbo assembly kit includes an oil restrictor and water fittings, providing a hassle-free installation experience.

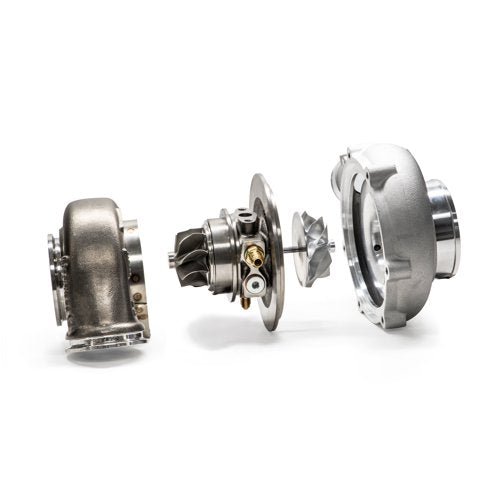

One-Piece Center Housing and Backplate: Enhancing durability and reliability, the G30-770 boasts a one-piece center housing and backplate construction.
Customizable Water Jacket Ports: With four water jacket ports, this turbocharger offers customization options to tailor the installation to your specific needs.
Mar-M Turbine Wheel Material: The turbine wheel material is crafted from Mar-M, rated to withstand extreme temperatures of up to 1050°C | 1922°F.
Stainless Steel Turbine Housings: The turbine housings are made of stainless steel, ensuring resilience in high-temperature environments up to 1050°C | 1922°F.
- Compressor Wheel Inducer: 58mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch (90mm) O.D. w/81mm centering ring V-Band
- Includes Oil Feed (1mm) Restrictor Fitting to -4AN
- Includes two Coolant Fittings to -6AN
- Includes Turbine Housing Inlet & Outlet V-Band Clamps
Upgrade to the Garrett® G30-770 Turbocharger and experience unrivaled power, durability, and performance on the road or the track. Dominate the competition and take your vehicle to new heights with this top-of-the-line turbocharger!
