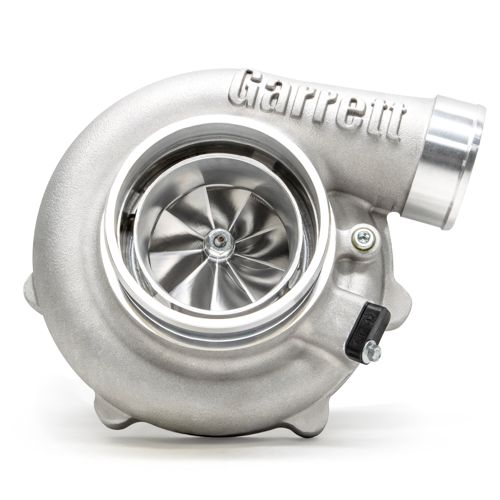

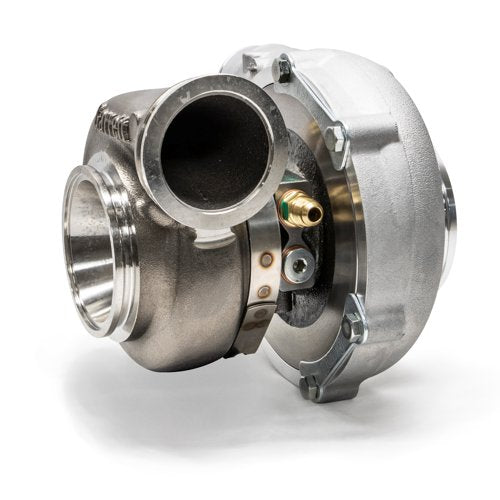

Garrett G35-1050 Standard Rotation 0.83 A/R Vband In/Out Turbocharger

  • Your Price
  • Regular price $3,170.32

PART NUMBER: 880700-5009S

Ask a Question

Introducing the Garrett® G35-1050 Turbocharger Kit - Power and Performance Redefined!

Upgrade your vehicle's performance with the cutting-edge Garrett® G35-1050 standard turbo assembly kit. Engineered for maximum power and efficiency, this turbocharger kit is the ultimate choice for automotive enthusiasts seeking top-notch performance and reliability.

Product Description:

The Garrett® G35-1050 standard turbo assembly kit features a V-Band In/Out turbine housing with a 0.83 A/R O/V, designed to deliver unparalleled performance and durability.

Product Features:

  1. New G Series Compressor Wheel Aerodynamics: Equipped with the latest G Series compressor wheel aerodynamics, the G35-1050 turbocharger ensures maximum airflow and improved compressor efficiency, unleashing exceptional power delivery.

  2. Fully Machined Speed Sensor and Pressure Ports: The turbo assembly kit comes with fully machined speed sensor and pressure ports, enabling precise data monitoring and analysis for optimal performance tuning.

  3. Standard and Reverse Rotation Configurations: The G35-1050 offers both standard and reverse rotation configurations, providing versatility to fit various vehicle setups.

  4. Oil Restrictor and Water Fittings Included: The kit includes an oil restrictor and water fittings, making installation hassle-free and ensuring reliable lubrication and cooling.

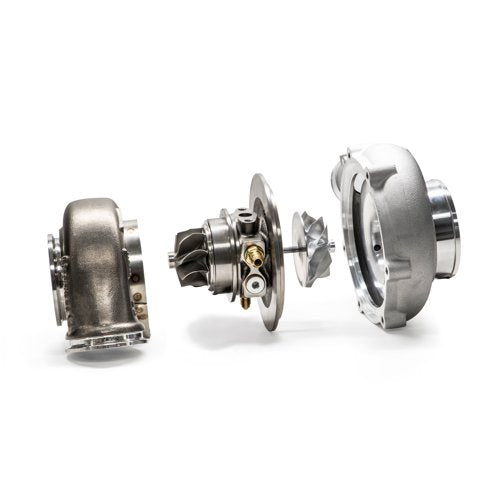

  5. One-Piece Center Housing and Backplate: The G35-1050 turbocharger boasts a one-piece center housing and backplate construction, enhancing durability and stability for long-lasting performance.

  6. Customizable Water Jacket Ports: Featuring four water jacket ports, this turbo assembly kit allows for customizable installation to suit your specific needs.

  7. Mar-M Turbine Wheel Material: The turbine wheel material is crafted from Mar-M, rated to withstand extreme temperatures of up to 1050°C | 1922°F, ensuring resilience and performance under demanding conditions.

  8. Stainless Steel Turbine Housings: The stainless steel turbine housings are designed to withstand high-temperature environments up to 1050°C | 1922°F, ensuring unmatched durability.

Product Specifications:

  • Compressor Wheel Inducer: 68mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps

Experience the unmatched power and reliability of the Garrett® G35-1050 Turbocharger Kit. Whether you're seeking dominating performance on the track or enhanced capabilities on the road, this turbocharger kit will exceed your expectations. Elevate your driving experience and leave the competition behind with the Garrett® G35-1050 Turbocharger Kit - your path to turbocharged greatness!
