Extreme Turbo Systems

ETS 03-06 Mitsubishi Evo 8/9 3.0" Short Route Upper Intercooler Piping Kit

  • Your Price
  • Regular price $613.00

PART NUMBER: 100-20-ICP-254

Ask a Question

 *NOTE: EDM/JDM cars equipped with the factory SAS system requires removal.


  • Designed for Stock Intake Manifold

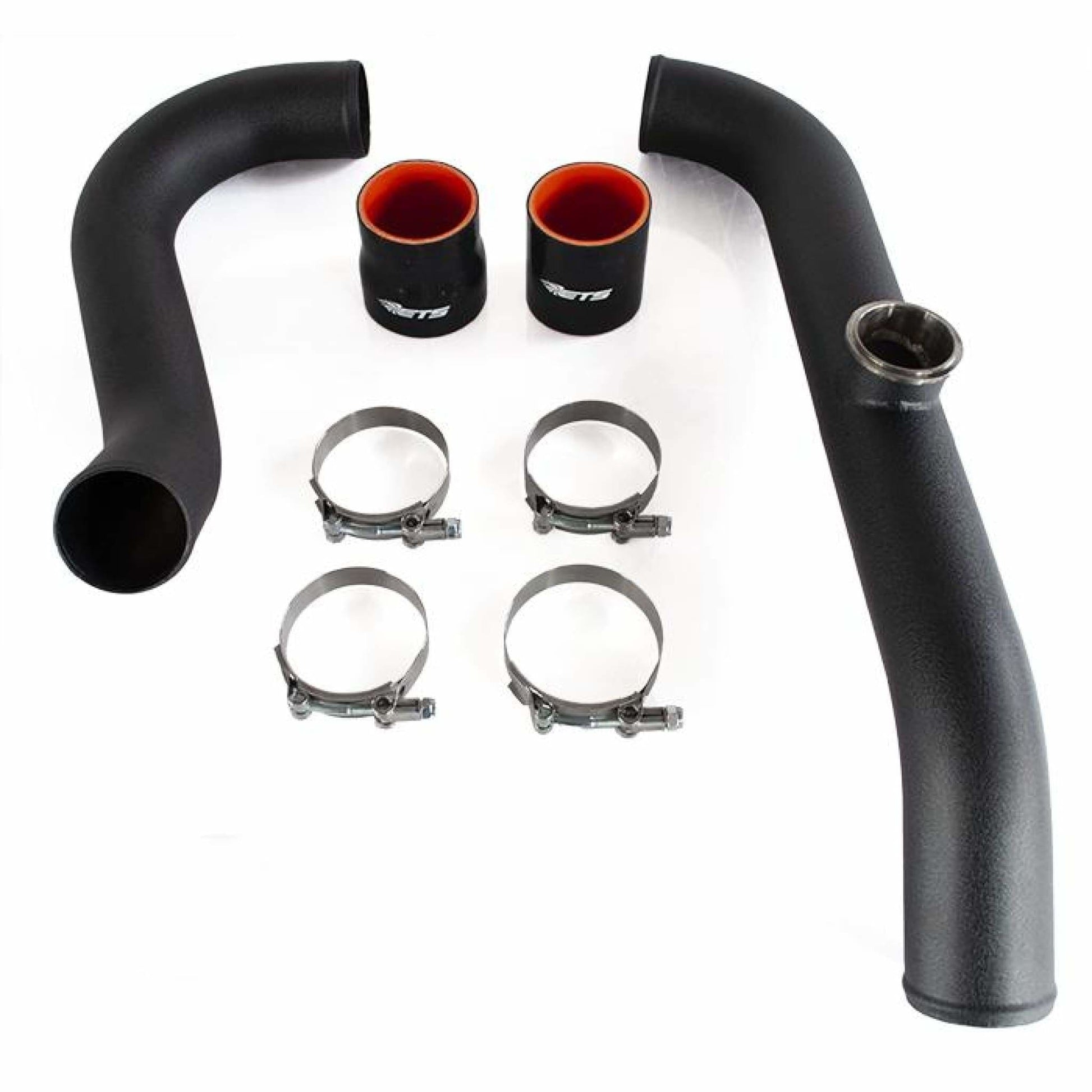

  • Complete Upper Intercooler Piping Kit (Lower Pipe Sold Separately)
  • Stainless Steel Mandrel Bent Piping
  • Short Route: Two feet shorter than stock (ETS Small Battery Kit or Battery Rolocation Required)
  • Lower piping flows over 20% more
  • Upper Piping flows over 12% more

The ETS Evo Piping kit is designed to eliminate many of the unnecessary bends in the stock piping. Our complete piping kit starts off by immediately expanding into 3.0" right off of the turbo elbow. This replaces the tiny 1 3/4" factory pipe and instantly adds an extra 15hp and greatly improves spool. From here it follows the core support and wraps around to the intercooler. Once the air passes through the intercooler, the piping takes a short direct path around the core support, over the transmission and straight up to the throttle body. This unique routing is over two feet shorter than the stock routing which results in greatly improved spool.

Note: Recirculation kit is only needed for Mini Battery route.

Customer Reviews

Based on 2 reviews
Gregory Sterling
Fast shipping

Great product

Great Quality

Everything came well packed, piping fitment is perfect! Only thing missing was some merch, cap or shirt :) jk!



Ask a Question
  • Will this work with Magnus intake manifold & 80mm ktuned throttle body and BR 4” fmic?

    Yup, just specify that in the order notes!

  • Do you guys make any kits that are not wrinkle black anymore? In the 3"

    We can do raw stainless and you can coat it. Those are our only options

  • Will his kit fit an Evo 8 with ACD?

    Yes it will!
