The 2008-2014 ETS Subaru STI Rotated Turbo Kit is one of the most complete kits on the market utilizing optimal intercooler pipe routing and a larger ported s-cover along with a wide variety of turbochargers to match your performance needs. Our turbo kits are capable of supporting 300-1000hp+. If you are adding this to an existing ETS FMIC Kit, you will also need a Rotated Conversion kit.

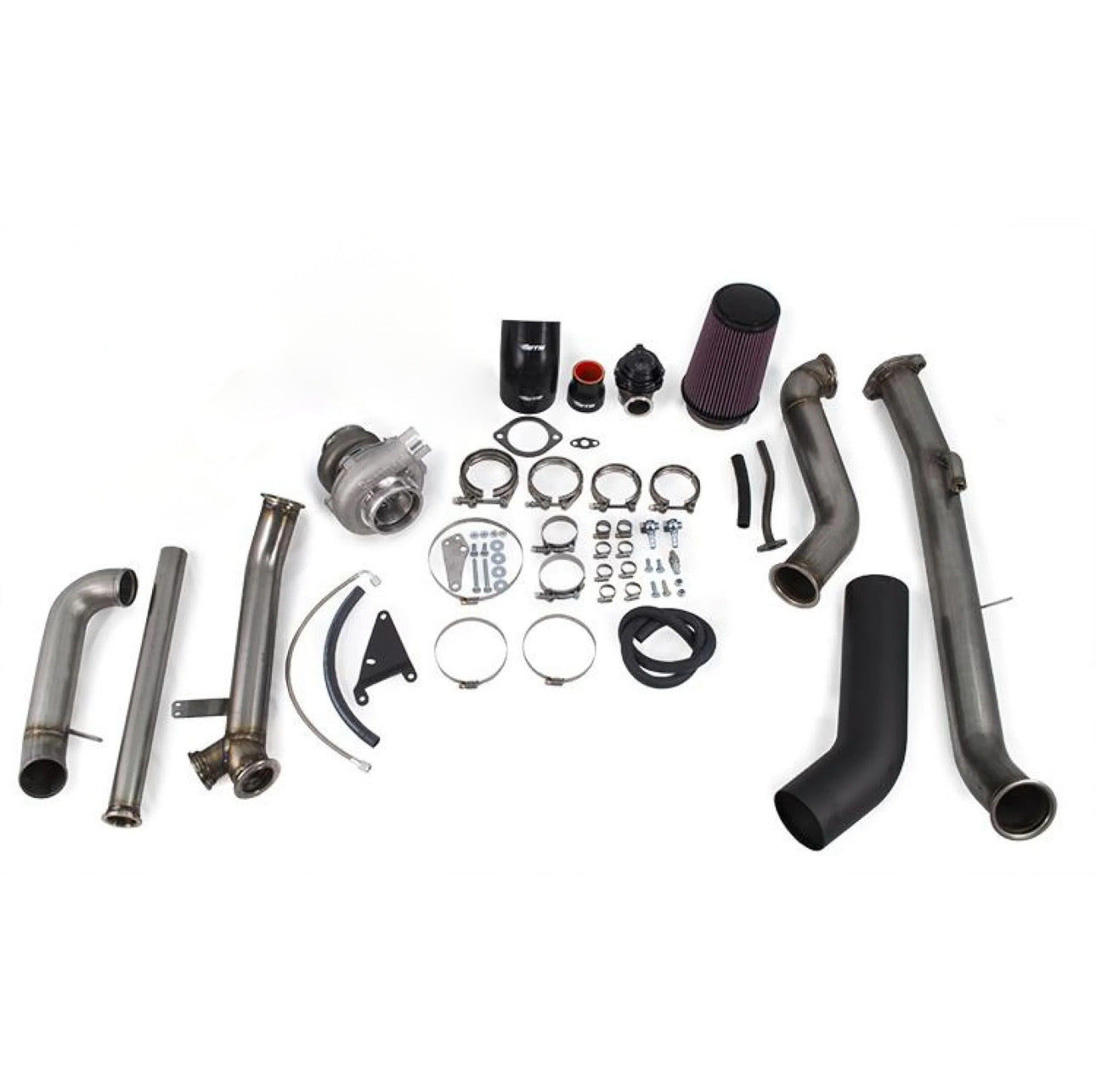

- Rotated Placement.
- Larger Ported S-Cover w/ Anti-Surge Housing.
- Vband Inlet/Outlet Turbine Housing.
- Wide variety of turbochargers to match your performance needs.
- Turbocharger (PTE, FP or Garrett)
- 02 Bung in Downpipe
- 2 3/8" Up-Pipe (2 1/8" ID)
- 2.5" Upper Intercooler Pipe (Under Intake Manifold)
- 3.0" Downpipe
- 1 3/4" Dump tube
- Intake (4.0" Speed density or 3.0" Stock MAF)
- Oil lines
- Water lines if needed
- Overflow Tank Relocation Bracket
- Couplers and Clamps
PLEASE NOTE: Orders with Precision turbos will get Precision wastegate(s). Orders with Xona or Garrett turbos will get TiAL Wastegate(s)
It definitely was a very tight fit. But once everything is tightened down it feels super solid. Would definitely recommend for anyone going rotated. These guys are the best in the game at what they do. Thanks again.
QUESTIONS & ANSWERSAsk a Question
If I have a 38mm tial wastegatw would I be able to still run it with the ets kit?
No, we use a 44mm wastegate to prevent boost creep. This is extremly important with newer turbo technology.
Will this fit 2015? I know the fitment say 15 but i want to know if you ever had a return for that issues.
You will need to run our 15+ STI Turbo Kit.
I’m I able to use different header and will it still fit
Yes, as long as the header works with the factory up-pipe location.
What a/r tubine housing is included with G30-900?
The G30-900 is available in .61,.83,1.01 and 1.21.
By default we send .83 but you can specify the A/R in the order notes if you like. They are all the same price.
Does your turbo kit work with your top mount intercooler? Or am I going to be swapping to a front mount?
You will need to run a FMIC. For fitment and heat soak issues!
What all does this kit come with? It pictures headers but all talk about mounting flange to the headers. Does it come with everything pictured except turbo? Very confusing parts list.
The header is not included (but available separate)
Includes Turbocharger (PTE, FP or Garrett) - When turbo option is selected 02 Bung in Downpipe and Manifold Wastegate (TiAL 44mm MVR) 2 3/8" Up-Pipe (2 1/8" ID) 2.5" Upper Intercooler Pipe (Under Intake Manifold) 3.0" Downpipe 1 3/4" Dump tube Intake (4.0" Speed density or 3.0" Stock maf) Oil lines Water lines if needed Overflow Tank Relocation Bracket Couplers and Clamps
Will this kit mostly fit 08-14 WRXs? I know you guys don’t make FMIC for them. So we should just have to source a way for cold side piping to work?
Not too sure if you had seen it, but we make a WRX piping kit and sell it on our website here - https://www.extremeturbosystems.com/collections/08-14-sti-intercoolers/products/ets-08-14-subaru-wrx-intercooler-piping-kit
The WRX and STI use the same Intercooler core, you can find those here - https://www.extremeturbosystems.com/collections/08-14-sti-intercoolers/products/ets-08-14-subaru-sti-and-wrx-front-mount-intercooler
Which 3076r comes with the kit? .63, .82 or 1.01?
The standard option would be .82 as a "Middle-of-the-road" option, that represents the best balance between peak power and transient boost response. We can always use a specific A/R upon request, if you have a preference just make sure to include that information in the order notes!
