The Extreme Turbo Systems Intercooler Piping Kit for the 2015+ Ecoboost Mustang is designed with performance in mind by replacing the factory rubber piping, which expands and contracts under throttle and replacing it with 2.5" mandrel bend stainless steel piping and your choice of blow off valve flange.
- Made in the USA
- Mandrel Bent Stainless Steel
- Wrinkle Black Powder Coat Finish
- Works with factory intercooler
- Optional TiAL, HKS or Turbosmart blow off valve flange.
- 4 ply silicone couplers
- T-bolt Clamps
QUESTIONS & ANSWERSAsk a Question
Is the Tial BOV flange for the ETS Mustang Ecoboost charge pipes on the hot or cold side? What (if any) hardline hardware is included?

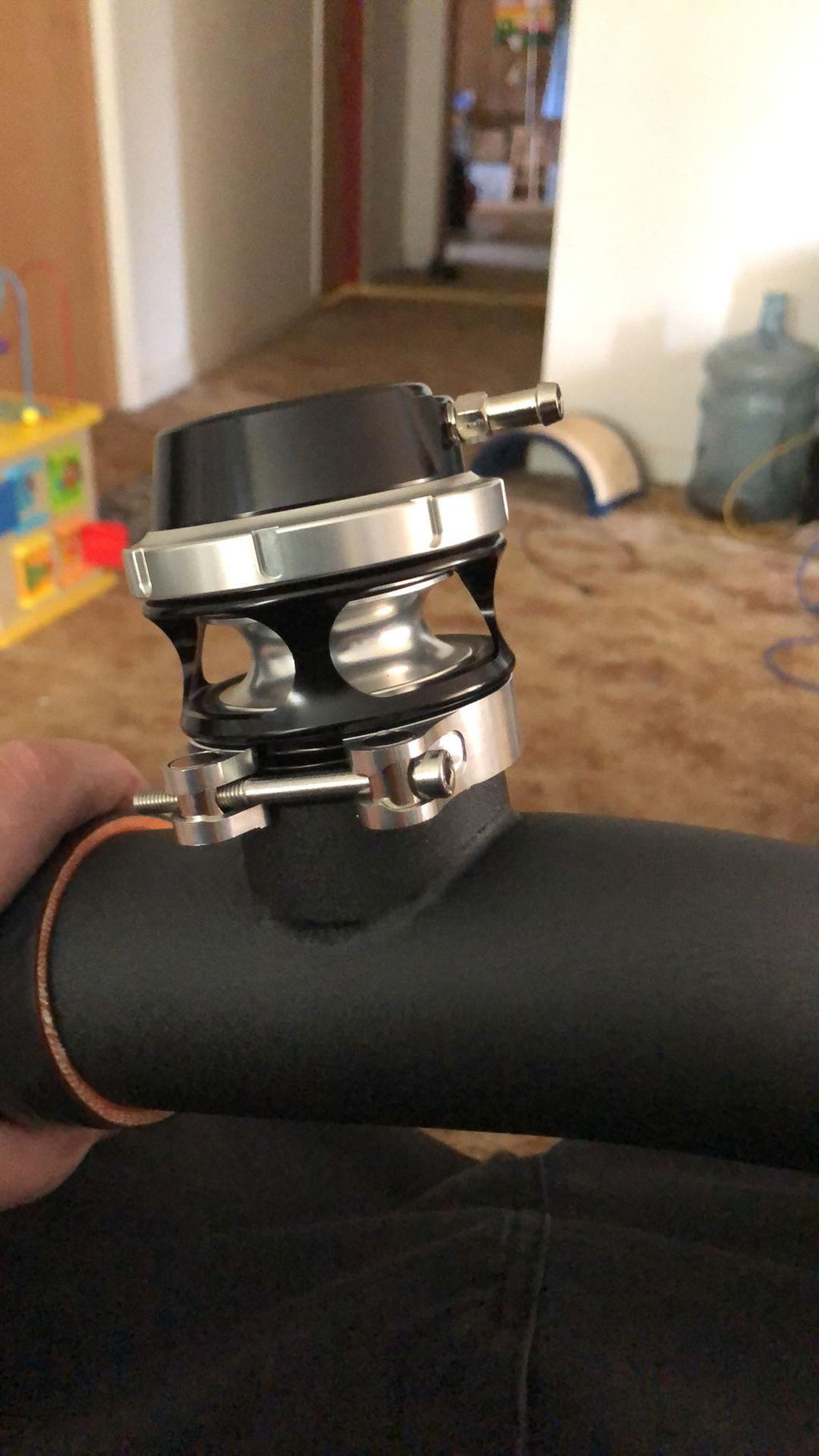

The BOV flange is on the cold side piping, just before the throttle body. We send a full hardware kit with these pipes shown below

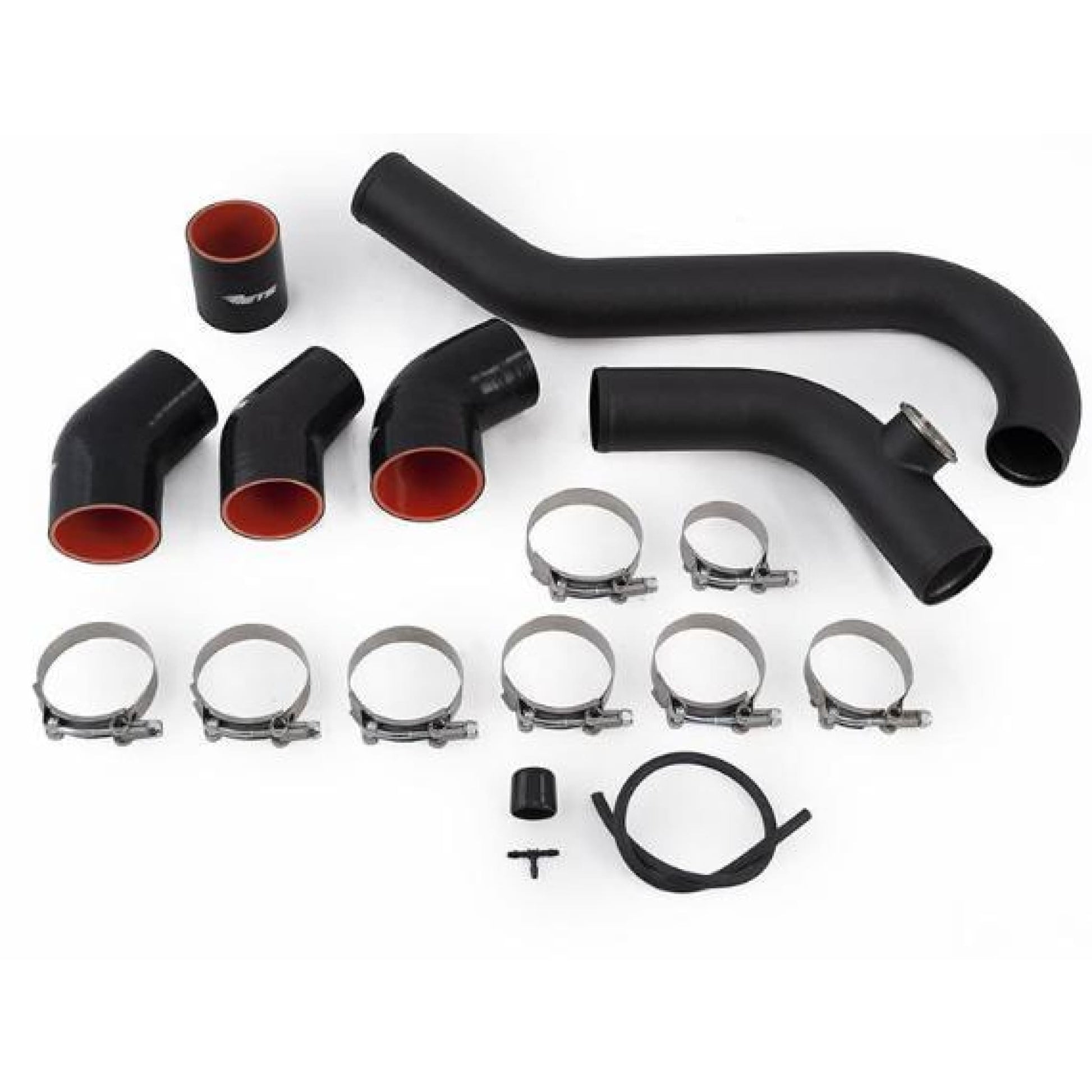

1x BOV Pipe
1x Hot Side Pipe
1x 2.00" to 2.50" 45 Deg Reducer Coupler
1x 2.50" Straight Coupler
1x 2.50" 45 Deg Coupler
1x 2.50 to 2.75" 60 Deg Coupler
6x 2.50" T-Bolt Clamps (TB263)
1x 2.00" T-Bolt Clamp (TB213)
1x 2.75" T-Bolt Clamp (TB288)
1x 1" Vacuum Cap
1x Vacuum Tee
1x 18" Vacuum Line
