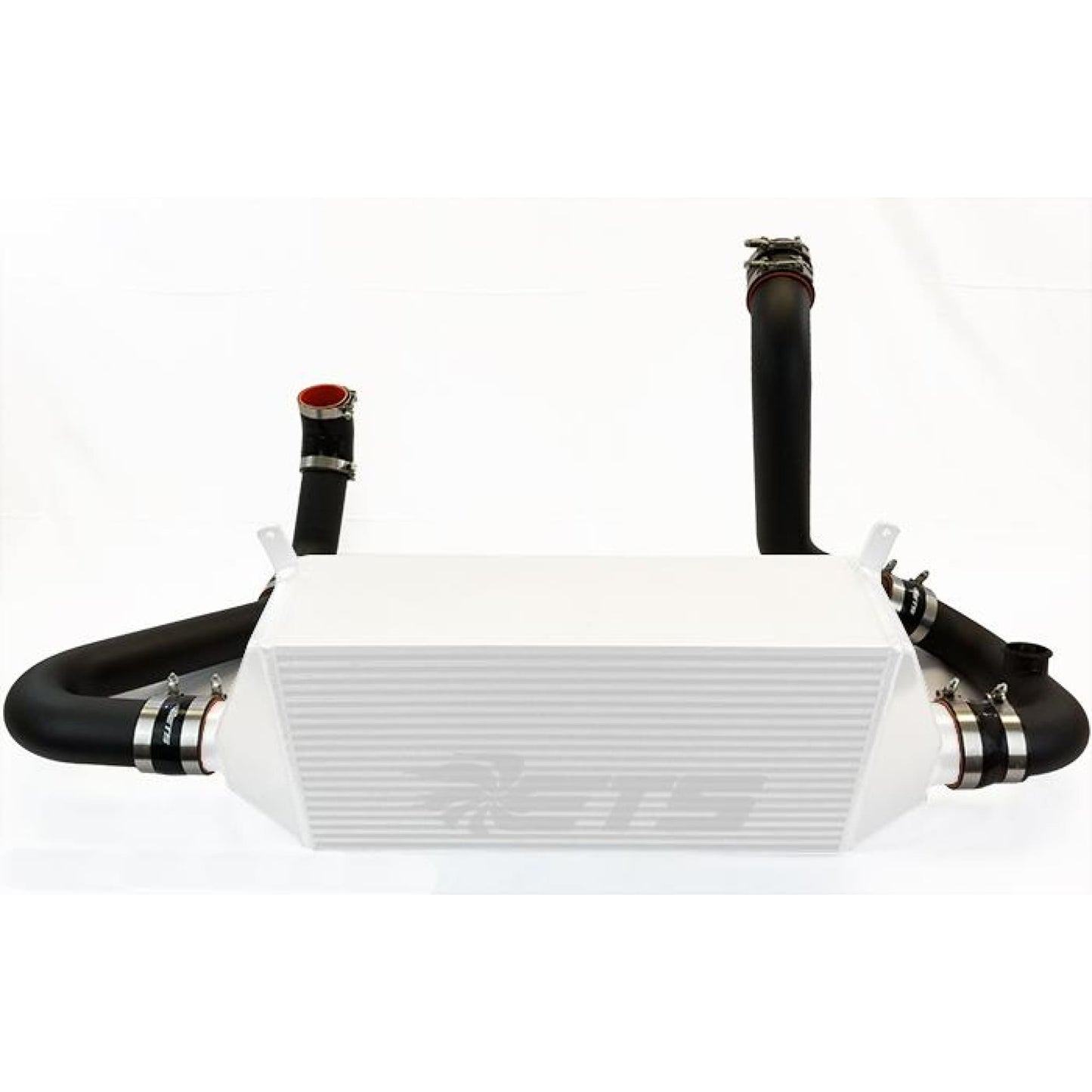

This ETS MK4 Intercooler piping kit is a must have for anyone planning on turning up the boost. It eliminates a great amount of restriction from the stock piping and greatly assists in keeping intake air temperatures low. Whether you are on the factory twin turbo set up, or that big single turbo we make a piping route to fit your application.
-Wrinkle Black powder coating
**Note - Big single kit requires modification of compressor cover to reach piping (Weld aluminum elbow to outlet)
QUESTIONS & ANSWERSAsk a Question
Does it fit RHD?
Yes, this is compatible with RHD
Will these mount to my current Blitz FMIC? It also has 3" inlets/outlets. I just need new piping for right now.
We don't think so. Every manufacturer has a slightly different inlet/outlet location. We do gaurantee fitment with our front mount intercooler.
Hello, with the MKIV 3" FMIC piping kit. Can I choose the exact location of the bov flange? I just dont want the big TIAl biv hitting my oil cooler. I have good space behind it.
Unfortunately, we don't have a good way of letting the customer specify the location. We can send the blow off valve flange separately if you would like to weld it in a different location. If so, please specify in the notes.
How much horsepower is the intercooler rated for? How much can it handle 1000+?
4" Thick - 1272CFM at 81% efficiency rating. (850hp) 5" Thick - 1596CFM at 83% efficiency rating. (1100hp) 6" Thick - 2100CFM at 84% efficiency rating. (1500hp)
hello a dump valve tial 50mm mounts on your piping if I select the option tial? thank you
Yes is does
I’m planing on using this with my current Intercooler but need new hard piping. Will this work with the stock twins without modification? Looking for a clan easy to remove when need piping.
This piping kit will only work with our FMIC. It doesn't work with the stock intercooler.
Will the 5 inch thick intercooler fit without modifying the bumper/surrounds?
It will fit, no trimming required.

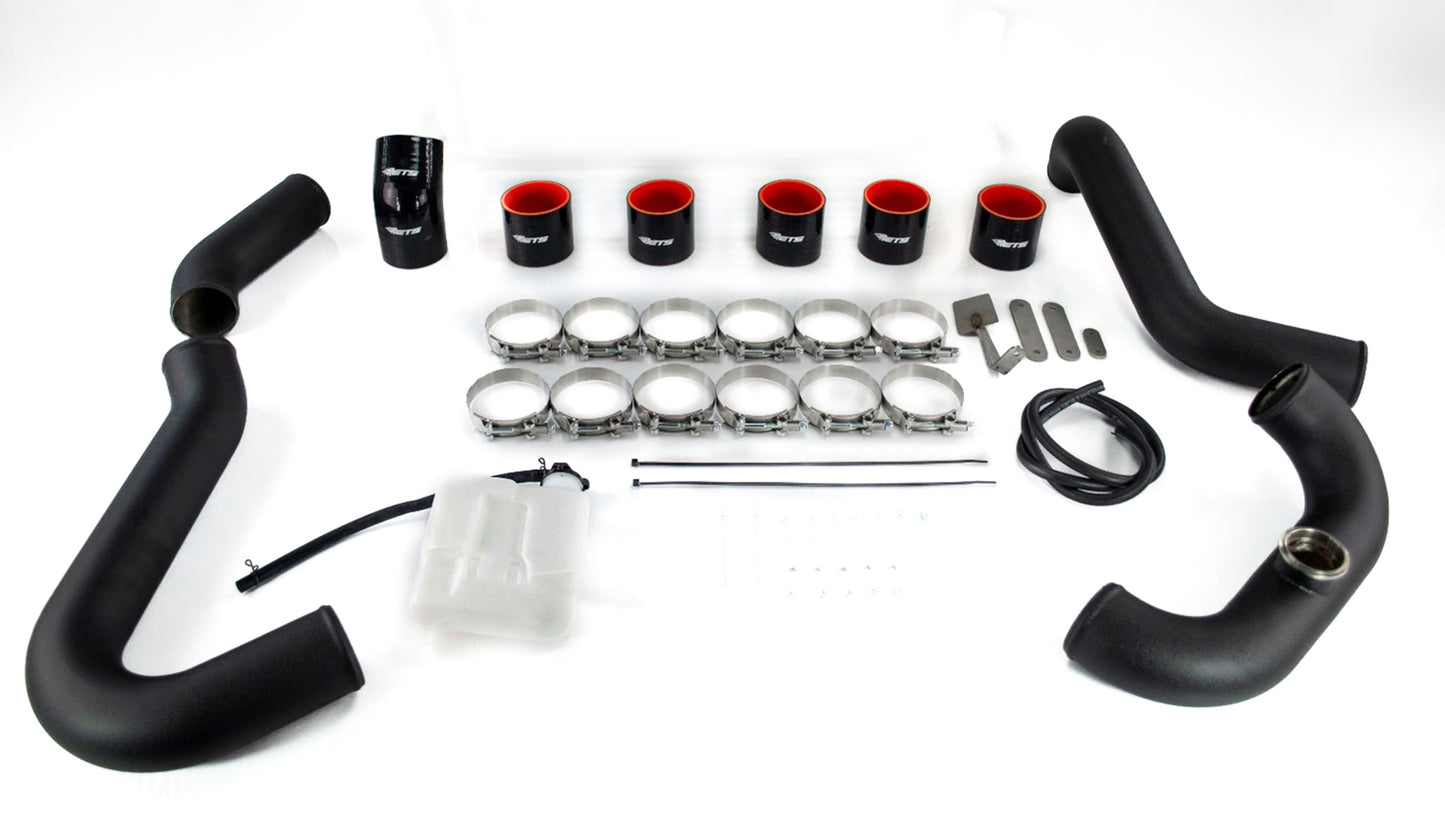

Does this kit include couplers and t bolt clamps?
Yes it does
just wondering how soon these would ship out after purchase. trying to decide if i just jump in on the whole kit with the ic but i was told sometimes you dont have this in stock and take 3 weeks to make them.
This is incorrect, we often shelf stock and piping and cooler will ship the day after purchase. If we have to build it, it only take 2-3 days max after purchase. BUT, if you select anodizing on your intercooler it can add up to 2-3 weeks to the build time because that is outsourced.
Is it possible to have the piping raw? Would that play a part in pricing also?
We can do raw unbrushed piping, simply specify that in the "order notes" and we will accommodate. However, it does not effect pricing.
Does this piping work with PHR Dual High-Performance Spal Fan Kit?
We haven't test fitted the kit with that fan setup but there could be some interference with the pipe coming off the intake manifold.
Hello, I am interested in purchasing the 3" piping to go along with the ETS 4in Intercooler. I have a 50mm Precision BOV and was wondering what to select for for the BOV flange option.
Precision uses the same flange as TiAL for their 50mm BOV, you will want to select "TiAL" for the kit option.
