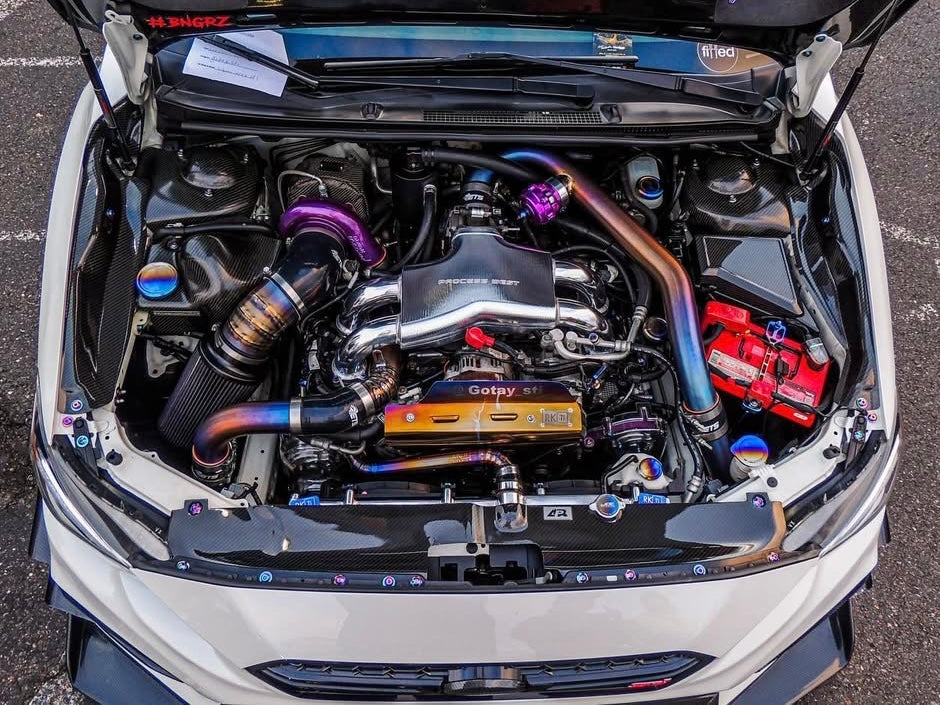

ETS Subaru 15+ STI Single Scroll Turbo Kit
The ETS Subaru STI Turbo Kit is one of the most complete kits on the market utilizing optimal intercooler pipe routing and a larger ported s-cover along with a wide variaty of turbochargers to match your performance needs. Our turbo kits are capable of supporting 300-1000hp+.
- Rotated Placement.
- Larger Ported S-Cover w/ Anti-Surge Housing.
- Vband Inlet/Outlet Turbine Housing.
- Wide variety of turbochargers to match your performance needs.
- Turbocharger (PTE, FP or Garrett)
- 02 Bung in Downpipe
- 2 3/8" Up-Pipe (2 1/8" ID)
- 2.5" Upper Intercooler Pipe (Under Intake Manifold)
- 3.0" Downpipe
- 1 3/4" Dump tube
- Intake (4.0" Speed density or 3.0" Stock MAF)
- Oil lines
- Water lines if needed
- Overflow Tank Relocation Bracket
- Couplers and Clamps
- 2-bolt - Connects to factory or aftermarket 2-bolt manifold.
- 3-bolt - Connects to Tomei 3-bolt header.
- Vband - Connects to ETS MaxFlow Manifold.
PLEASE NOTE: Orders with Precision turbos will get Precision wastegate(s). Orders with Xona or Garrett turbos will get TiAL Wastegate(s)
QUESTIONS & ANSWERSAsk a Question
Could u install this with a AOS and the ets fmic being your only other modifications and be fine
Yes, you shouldn't have an issue installing an AOS. We recommend contacting the manufacturer to verify fitment
does the Xona rotor 6564 turbo come ready to install? Or do i have to purchase the hot side housing of the turbo?
If you select the option with the turbo it comes complete. clocked and ready to bolt on to the kit.
Is this a rotated setup?
yes it is.
Do you have an estimated release date for a new turbo kit to fit the Garrett G35-900? I run a 2016 STI. Thanks. Regards, Simon
We need to update the website with the new options. Please email email@example.com for a price quote.
Will the two bolt uppipe fit the invidia equal length headers
If the invidia header works with a factory up-pipe it will work with our 2-bolt turbo kit up-pipe.
I am running a mishimoto front mount on my 2016 sti. What all will I need to go with the rotated kit?
Unfortunately we do not sell a piping kit that's compatiable with the Mishimoto FMIC. Your cold side piping from the intercooler to the throttle body will be fine. The hot side piping will most likely be ok from the intercooler to the fender. The pipe that typically connects the turbo to the fender will need to be modified. We do provide an under the intake manifold pipe with our rotated turbo kit, so you will just need to make or modify a pipe from our under the intake manifold pipe to the Mishimoto fender pipe.
Will this kit work with Cobb FMIC?
It will require custom piping to make the kit connect to our rotated turbo kit but it will be close.
I would like to know what turbo I should choose in order to push 1000+ hp on my 2017 Subaru STI
The Precision 6870 and the Xona 9567 are both 1000HP rated turbos.
Is tial 44mm ewg the only option. I've been told that higher boost/hp you want to run 38mm ewg.
Yes, we only build them with a TiAL MVR (44mm). We have never had a boost control issue.

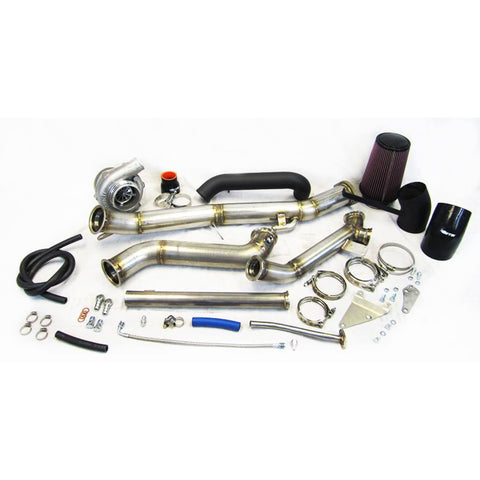

Is the picture you provide an accurate representation of what all is included with the kit? I don't see anything that represents a complete turbo inlet, ie ports to support MAF, AOS, PCV, and BPV circulation. I see that the description says you provide a 4" inlet for SD or 3" for MAF, but I don't see either. Thank you for any help!
What you are seeing here is a Speed Density intake setup. So it will not support a MAF. Our kits are designed to vent to BOV to the atmosphere. This intake does come with two hose barbs to be used for whatever you need (AOS, PCV, Boost reference)
I have the stock location ets fmic. What piping needs to be changed when doing rotated kit?
Just need the conversion kit https://www.extremeturbosystems.com/collections/15-19-sti-intercoolers/products/ets-15-19-sti-rotated-intercooler-piping-conversion-kit
Does it come with tial ewg only or can you choose to turbosmart?
We only offer TiAL products. They provide the best performance and fitment with our kits.
Do these bolt up to stock headers
Yes, if you select the 2 bolt up pipe connection option it will bolt to the stock header.
For the pte6466 BB turbo. It doesnt give an option for hotside. Do we have the choice of .63 .82 or higher ornisnit whatever you guys send. Cause that turbo has multiple options else where.
Generally, we go with an .82 AR but you can definitely put something different in your "order notes" section and we will change up the housing!
Is the 3bolt option for the tomei headers?
Yes it is.
Is there any install instructions for this kit?
No, but a lot of our customers have done install videos, that is a good resource.
Will the 2 bolt option bolt up to the stock header/ Killer-B elh?
It will work with 2-bolt and 3-bolt. We just can't do it with the V-band set up.
Can this kits uppipe (if V-Band is selected) be connected to the Killer B Holy Headers?
It can be, but the header would need to be sent to us so we could build the kit off of it. These kits are built as one piece.
Can this kit fit stock top mount intercooler?
The kit does not work with our rotated turbo kit. A FMIC kit is required.
Can this kit be purchased/used with a PTE 6062 Gen. 2?
Yes, you just select the 6062 turbo from the drop down menus under turbocharger if you want it included or if you already have the 6062 just select No turbo (PTE V-Band).
