Extreme Turbo Systems

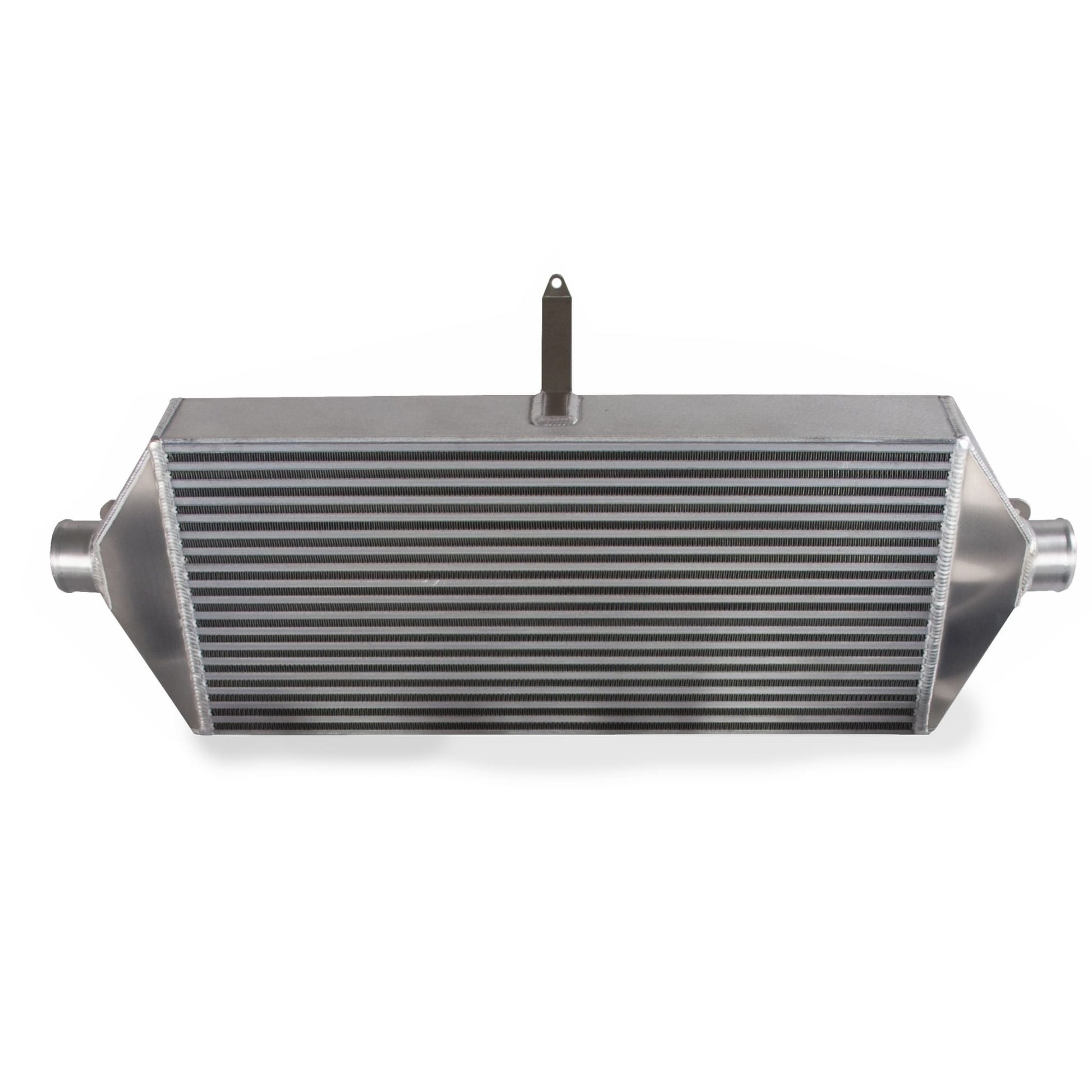

ETS 04-07 Subaru STI Front Mount Intercooler

  • On Sale!
  • Regular price $759.00

PART NUMBER: 200-10-IC-001

Ask a Question

 The key component to any good intercooler kit is the intercooler core itself. All of our intercoolers use the same record-setting core used in all the ETS race cars. It utilizes an unrivaled internal fin pack with its extremely efficient design (made exclusively for Extreme Turbo Systems). You can buy with confidence when buying the ETS intercoolers. You're getting the highest quality parts available for your car.

  • Pressure tested to 35 PSI
  • Hand fabricated and tig welded end tanks
  • Record-setting core design
  • Huge 26"x11.5" core size
  • Built in the USA

ETS 04-07 Subaru STI Front Mount Intercooler (No Piping)

The intercooler piping can be found here.

Check out this awesome video by Dustin Williams!

Customer Reviews

Based on 10 reviews
Brice Morel

J’ai acheté l’ensemble complet intercooler + piping kit. Produit de haute qualité , soudure parfaite et l’installation facile du plug and play pas d’ajustement à faire au top. Envoi rapide et service client parfait . Je recommande

Todd Guinn
04-07 5in intercooler

Came packaged beautifully fit perfect. Quicker than expected ship time


ETS 04-07 Subaru STI Front Mount Intercooler

Rob Mansfield

ETS 04-07 Subaru STI Front Mount Intercooler

Alejandro Rodriguez
Great product

Awesome intercooler with awesome performance made high 600+ Whp on my 05’STi and I known the 3.0” it’s rate for 500hp but I can say you can easily make 600hp on this intercooler I do really recommend this intercooler eyes close thanks ETS for the tremendous products 💪🏻💪🏻

Fannar Cray
Gold intercooler 4"

Fantastic product worth the fee and the wait



Ask a Question
  • Will the 3-4 core fit my 04sti and what’s the max boost and hp for that core ?

    Yes, we rate our 3.0" at 500whp, 3.5" at 650whp and 4.0" at 800whp.

  • I have a 2004 WRX with a Full STi swap from a 2008 would this fit or would I have to get the one for a 2008.

    You will want the 04-05 FMIC kit.

  • It says it only fits 04-07 STI. I have a 05 WRX Wagon. Does it fit my car and if not how can I get it to work?

    Yes, it will fit WRX models in this year range as well.

  • Would this fit a 2018 sti

    No, it does not without major modification.

  • I own a RHD 2006 STI (in Australia). What is the problem with fitting the 4” intercooler? Is there a way I can do some fab work to get it to fit?

    The intercooler should fit without an issue.

  • What horsepower it supports

    We have multiple thickness options for everyting from stock to 1100+HP

  • What is the weight of the 4” core intercooler please ?


  • Will this fit a right hand drive 2006 Sti?

    No, it will not, unfortunately.

  • For me to mount this on my 02 WRX with 3" it still requires bumper trimming right? Also, how will it mount to the vehicle? Are there specific holes that go to a particular hole for a particular bolt?

    This will not bolt to an 02-03 WRX. The core support doesn't have the mounting holes for the intercooler It will require some fab work to make it fit.

    The bumper will require trimming though. We have had customers make this kit work on an 02-03 WRX.

  • Stock turbo meaning stock location turbo like It will still fit with my fp black or I’d have to choose aftermarket for that ?

    An FP black would be an aftermark turbo. They use a 2.0" outlet which is slightly larger than stock.

  • When I select yes for the stencil logo, does that mean it is sprayed on already for me or it includes the stencil? Does this include hardware for mounting it to the car? Is a different crossmember provided with the intercooler for an 05 sti?

    Yes, the logo will come spray painted on the intercooler.

    Yes, hardware is included.

    The factory bumper beam must be removed.

  • What are the inlet and outlet sizes?

    They have a 2.5" inlet and outlet.

  • What is the 2005 STI front mount intercoolerrated for horsepower wise?

    Depends on the core thickness.

    Generally we rate the 3" good to around 550WHP, 3.5" to around 650WHP and 4" to around 800WHP. They can handle more but these are the HP #s you want to start thinking about going up a core size at.

  • Will this fit a 2002 WRX (with minor mods), if so, is there a piping kit that you recommend?

    There shouldn't be any specific differences that would prevent this from working on a WRX, and you can use the piping for the same year STI. There may be some small bracket differences or things that don't 100% line up between the WRX/STI, but they are largely the same.

    Here is the piping kit that you would want in stainless - https://www.extremeturbosystems.com/collections/04-07-sti-intercoolers/products/ets-04-07-subaru-sti-front-mount-intercooler-piping-kit

    We do also offer this kit in Titanium for an additional charge - https://www.extremeturbosystems.com/collections/04-07-sti-intercoolers/products/ets-04-07-subaru-sti-burned-titanium-front-mount-intercooler-piping-kit or https://www.extremeturbosystems.com/collections/04-07-sti-intercoolers/products/ets-04-07-subaru-sti-brushed-titanium-front-mount-intercooler-piping-kit
