Garrett G40-1150 Standard Rotation 1.06 A/R Vband In/Out Turbocharger

  • Your Price
  • Regular price $3,315.73


Ask a Question

Introducing the Garrett G-Series G40-1150 Turbocharger - Unleash Dominating Power!

The Garrett G-Series G40-1150 Turbocharger is the ultimate solution for high-performance engines, offering quick spooling and exceptional horsepower gains for engine platforms ranging from 2.0 liters up to 6.0 liters. Built with precision engineering and cutting-edge technology, this turbocharger unit takes your vehicle's performance to new heights.

Product Description:

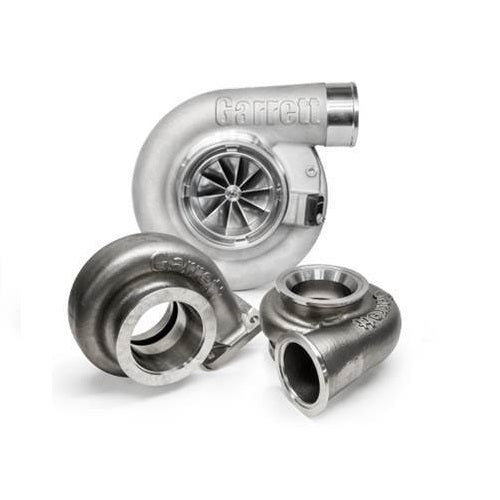

The G40-1150 Turbocharger boasts a 71mm compressor wheel and a 1.06 A/R V-Band In/Out Turbine Housing, perfectly crafted to deliver uncompromising performance and reliability.

Product Features:

  1. Quick Spooling, High Horsepower Solution: Engineered to deliver lightning-fast spooling and unleash high horsepower potential, the G40-1150 Turbocharger is the go-to choice for enthusiasts seeking maximum performance.

  2. G Series Compressor Aero: With G Series compressor aero, this turbocharger achieves a remarkable 32% increase in flow compared to the GTX4088R, ensuring an optimal balance between power and efficiency.

  3. Dual Ceramic Ball Bearing: The G40-1150 is equipped with dual ceramic ball bearings featuring steel cages, providing enhanced durability and reducing rotational friction for smooth performance.

  4. G Series Turbine Aero: The G Series turbine aero offers a 16% increase in flow compared to the GTX4088R, optimizing exhaust gas flow and further improving overall turbocharger efficiency.

  5. Inconel Turbine Wheel: The Inconel turbine wheel with a 77mm inducer allows for an impressive flow rate of up to 43 lbs/min, ensuring maximum power delivery under all conditions.

  6. Lightweight Aluminum Backplate: The turbocharger unit features a lightweight aluminum backplate, contributing to its overall efficiency and reduced weight.

  7. Fully Machined Speed Sensor and Pressure Ports: With fully machined speed sensor and pressure ports, precise data monitoring and analysis are made possible, enabling precise tuning for the best performance.

  8. Stainless Steel Turbine Housings with V-Band Inlet: The G40-1150 now offers stainless steel turbine housings with V-Band inlets, providing improved durability and ease of installation.

Product Specifications:

  • Compressor Wheel Inducer: 71mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84

Elevate your driving experience with the Garrett G-Series G40-1150 Turbocharger, where power, performance, and reliability unite. Dominate the road or the track with this top-of-the-line turbocharger - the ultimate choice for serious enthusiasts and motorsport professionals alike!
