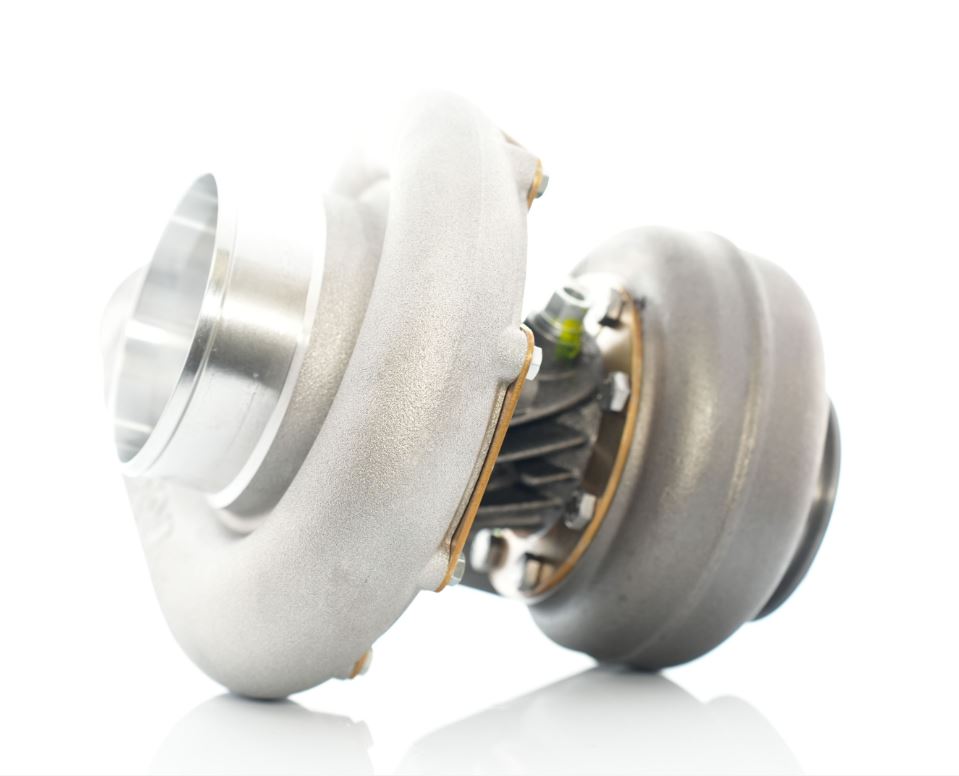

Introducing the groundbreaking 7275 H Cover turbocharger, featuring the cutting-edge NEXT GEN technology. It combines a robust 72mm CEA compressor wheel with a high-flow 75mm turbine wheel. This turbocharger, built on the foundation of the H cover ball bearing design, offers versatility with a range of turbine housing options. Designed to elevate your project to the NEXT GENERATION, the NEXT GEN Sportsman 7275 stands as a record-breaking turbocharger, ideal for those seeking to achieve power levels exceeding 1,380 horsepower.

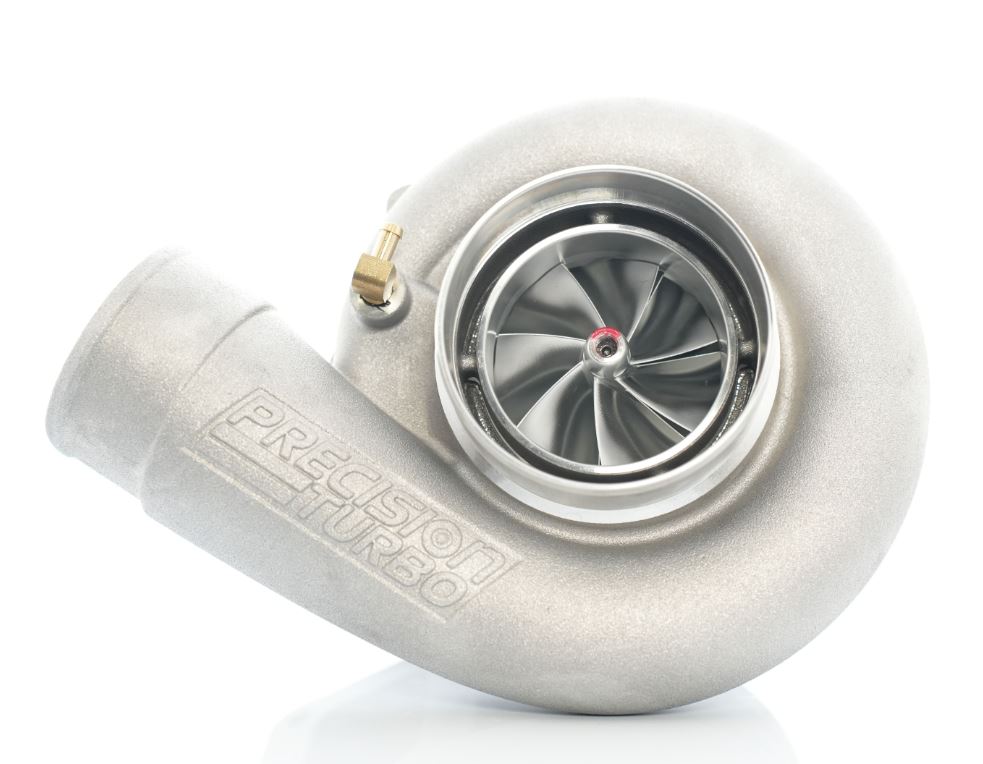

Pioneering the NEXT GENERATION of race technology, this turbocharger leads the market with its impressive 72mm H cover compressor wheel. The brand-new 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel is precision-machined from a 2618-aluminum closed die forging, ensuring both strength and optimized airflow. The compressor cover itself boasts a completely redesigned structure, enriched with flow-enhancing features and advanced machining techniques. This results in an astonishing 15% increase in airflow efficiency, particularly at higher pressure ratios.

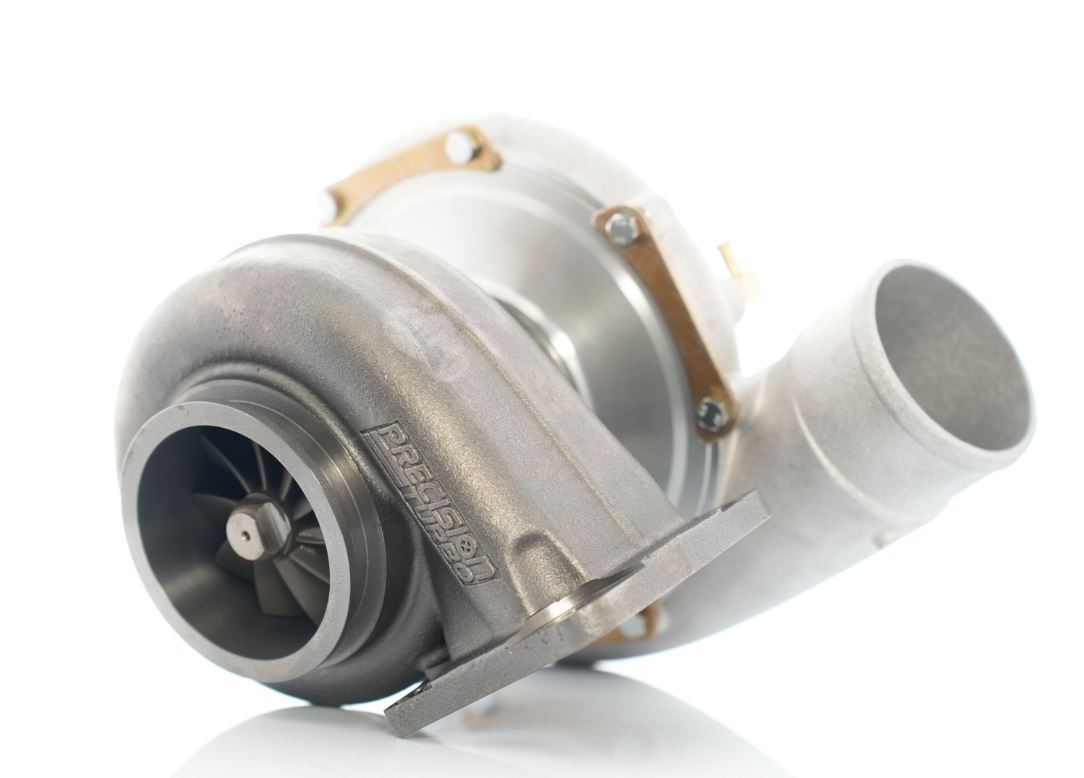

The core of this turbocharger is its air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA). This feature ensures rapid turbo response, unmatched durability, and remarkable thrust capacity. The high-flow 11-blade turbine wheel is engineered with high-temperature-resistant Alloy, ensuring exceptional performance.
What's more, the NEXT GEN 7275 H Cover turbocharger maintains the same competitive pricing as the Gen 2 version while delivering a proven 15% improvement over its predecessor. It is confidently rated to support an impressive 1,380 flywheel horsepower.
- Compressor Wheel Inducer: 72mm
- Compressor Wheel Exducer: 99/101mm
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75mm
- Turbo Max Speed: 136,150 RPM
